Alarm Controls PA-300 Two Tone Peizo Buzzer 3-28VDC
SKU
PA-300
Model No
PA-300
$25.50
Product Highlights
- Dual tone buzzer, continuous tone and pulsing tone
- Sound level 85dB @ 3 feet
- Operating voltage 6 to 28VDC
- Current draw 1.5mA @ 6VDC, 4.5mA @ 12VDC, 12.5mA @ 28VDC
- 6" red , yellow and black leads
Speak to an expert

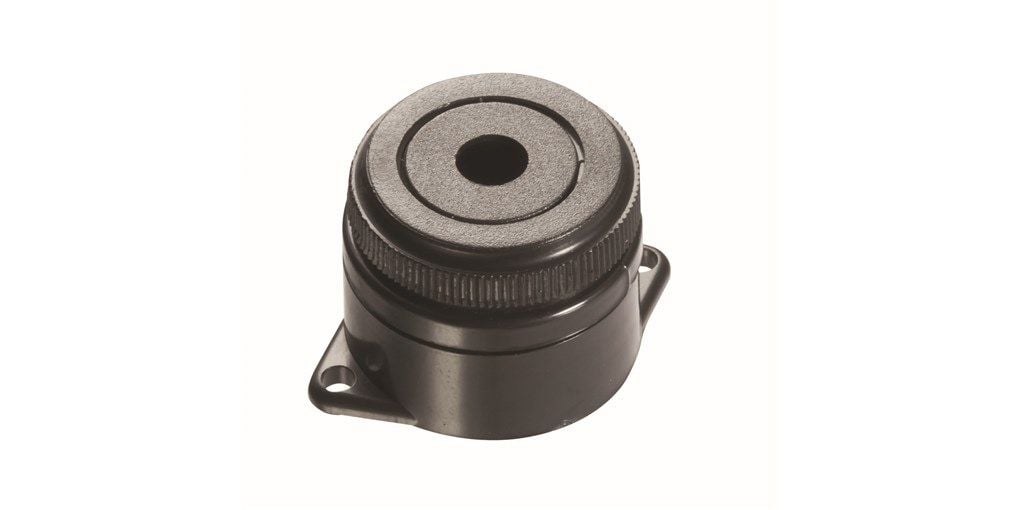

The PA-300 from Alarm Controls is a two-tone piezo buzzer designed to operate within 3-28VDC, offering reliable auditory alerts for various applications. Its dual-tone feature provides versatility, while the impressive sound level ensures it captures attention in any environment.
Alarm Controls PA-300 Buzzer Features
- Dual Tone: Offers continuous and pulsing tone options, allowing for customized alert scenarios.
- Sound Level: Produces an 85dB sound level at 3 feet, ensuring high visibility in noisy environments.
- Operating Voltage: Compatible with a wide voltage range of 6 to 28VDC, providing flexibility for various power sources.
- Current Draw: Efficient power consumption with 1.5mA @ 6VDC, 4.5mA @ 12VDC, and 12.5mA @ 28VDC, optimizing battery life in portable applications.
- Lead Length: Comes with 6" red, yellow, and black leads for easy installation and integration.
- Mounting Option: Designed for use with model RP-23 single gang wall plate, simplifying the mounting process.
Detailed Specifications for PA-300
| Feature | Details |
| Model | PA-300 |
| Type | Piezo Buzzer |
| Voltage Range | 3-28VDC |
| Sound Output | 85dB @ 3 feet |
| Current Draw | 1.5mA @ 6VDC, 4.5mA @ 12VDC, 12.5mA @ 28VDC |
| Lead Length | 6 inches |
| Mounting | Model RP-23 single gang wall plate |
SKU  | PA-300 |
|---|---|
| Manufacturer | Alarm Controls |
