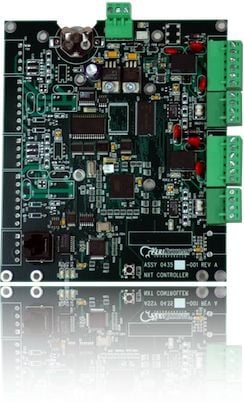

Keri Systems NXT-2D-UL Two Door/Four Reader Controller with Enclosure

The Keri Systems NXT-2D-UL Two Door/Four Reader Controller is designed for modern IT environments, offering seamless integration with existing TCP/IP networks to significantly reduce installation costs. Built for performance, it utilizes CAT-5 cabling for efficient connectivity and boasts intelligent decision-making features that optimize network bandwidth. With its straightforward configuration and robust security features, the NXT-2D-UL provides flexibility and reliability for all your access control needs.

Keri Systems NXT-2D-UL Key Features

• 2 Door/4 Reader Control: Manage two doors with the ability to support up to four readers, enhancing access control flexibility.
• On-board TCP/IP Connectivity: Eliminates the need for external network adapters, simplifying installation and reducing costs.
• In/Out Capability: Allows for effective management of traffic through the doors when using NXT Readers, streamlining access.
• Cost-effective Cabling: Decreases cabling costs by utilizing shielded CAT-5 over traditional methods, making installation efficient.
• Network Compatibility: Capable of utilizing existing LAN/WAN/Ethernet networks or dedicated CAT-5/6 setups, providing versatile solutions for different setups.
• Embedded MAC Address: Features one-button auto-configuration for easy setup, enhancing user convenience.
• Standard Connectivity: Includes a 4 Pin Block and RJ-45 Jack for effortless network connection.
• Flexible I/O Management: Offers the ability to re-assign inputs and outputs, allowing for customization based on security needs.
• Quick Disconnect Connectors: Facilitates faster maintenance and changes as needed, improving overall system manageability.
• Capacity: Supports up to 50,000 cardholders and 10,000 events in the buffer, ensuring comprehensive user management.
• Locking Metal Enclosure: Provides enhanced physical security for the controller, safeguarding vital components.
• 128 Bit Encryption: Secures data transmission, protecting sensitive information from potential threats.

Keri Systems NXT-2D-UL Detailed Specifications
