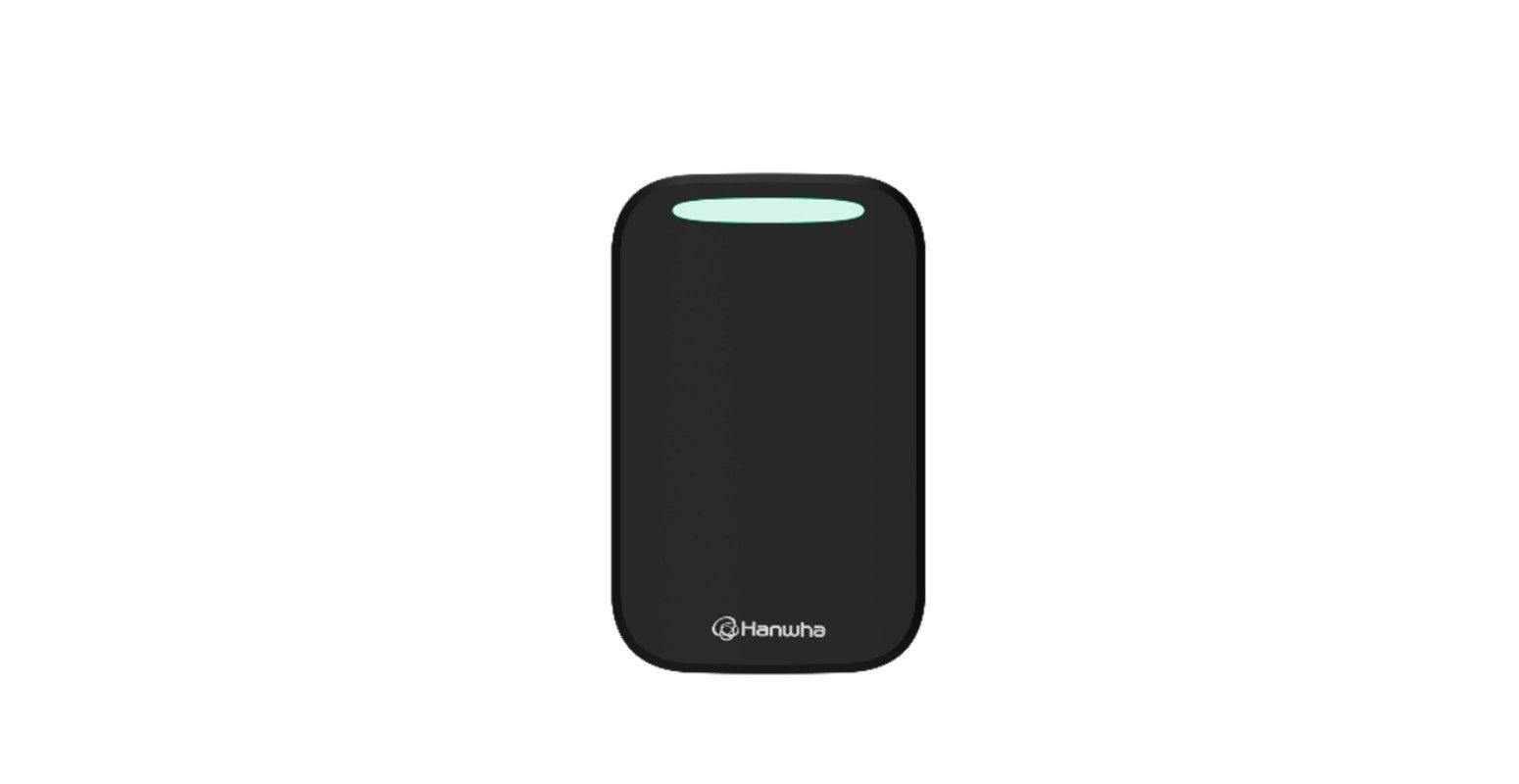

Hanwha Vision NOD-AX20S Single Gang Credential Reader

Hanwha Vision Multi-Technology Reader Features

This advanced multi-technology single gang reader from Hanwha Vision integrates cutting-edge capabilities providing seamless access control solutions. It supports 13.56 MHz (NFC), 125 kHz (PROX), and Bluetooth BLE 5.3, ensuring compatibility with various credentials for versatile installations. The reader's auto-detection for Wiegand or OSDP infrastructures, along with remote firmware upgrades, enhances operational flexibility and security while complying with multiple industry standards.

Highlighted Features

• 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3: Utilizes multiple technologies for comprehensive access options, catering to different user needs.
• Auto-detect for Wiegand or OSDP infrastructures: Automatically identifies system compatibility, simplifying installation and integration.
• Remote firmware upgrade support: Allows convenient radio enable/disable and control sequencing, ensuring the device stays up-to-date.
• Supports all Ethos-supported credentials: Compatibility with various credentials enhances flexibility in access management.
• Accelerometer-based tamper detection: Provides an additional layer of security, alerting to potential tampering.
• Typical read range of 2 inches: Optimized for quick and reliable access processing.
• EAL6+ Secure Element: High-level security assurance for sensitive data transactions.
• IP65 or better: Ensures durability and functionality in various environmental conditions.
• Power: 5–24 VDC: Flexible power options make it suitable for various installation settings.
• Current draw: 500 mA @ 12 VDC: Efficient energy consumption for sustainable operation.
• Dimensions: 5.25"L x 3.29"W x 0.73"T: Compact design allows for easy mounting without sacrificing functionality.
• Regulatory compliance: FCC, IC, CE, UL294, OSDP Verified V2.2: Meets industry standards for reliability and performance.
• Plastics: UL94-V0, UL746C-F1 for UV/water resistance: Robust material design extends the product's lifespan in challenging environments.
