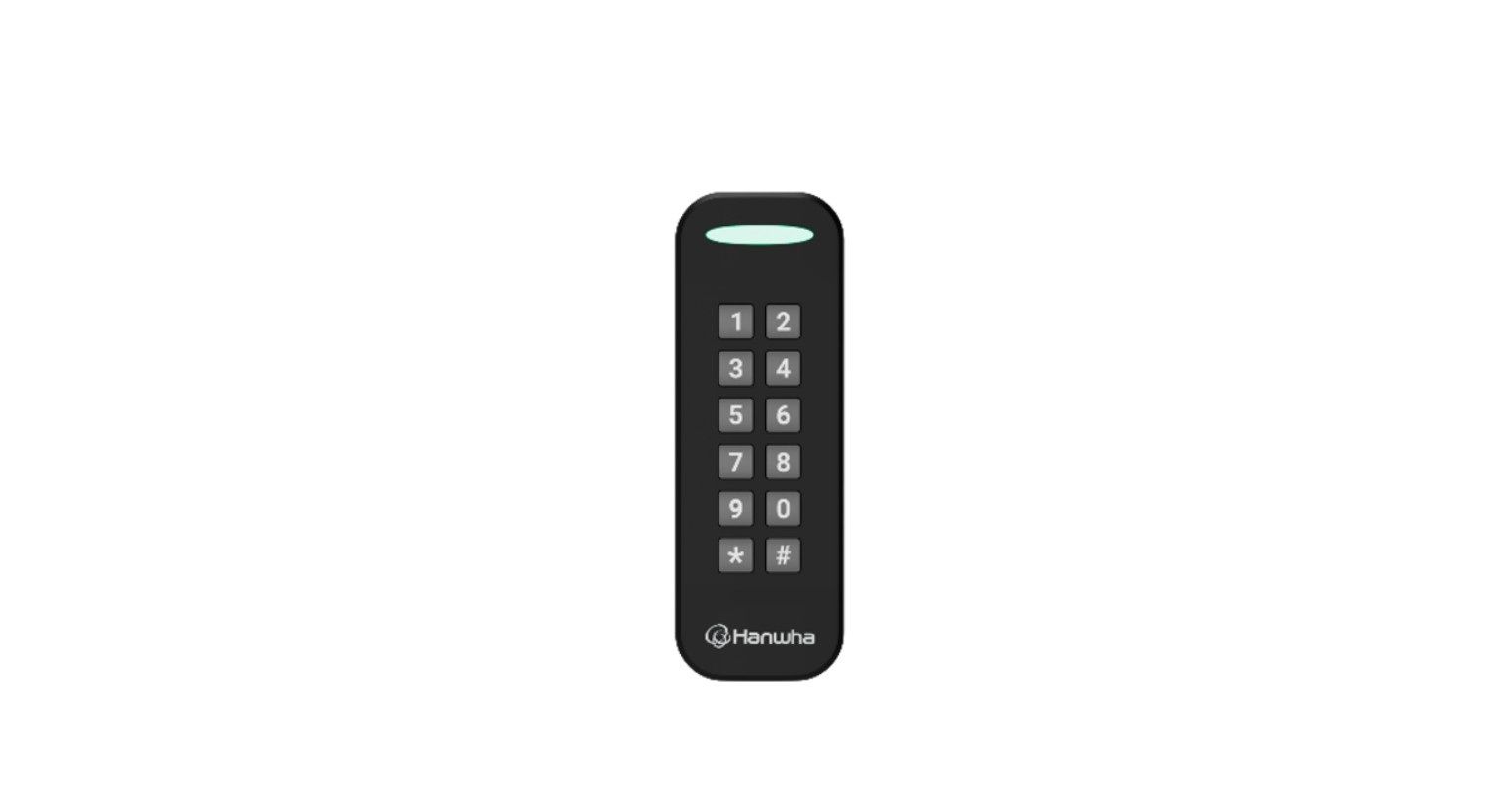

Hanwha Vision NOD-AX15S Mullion Mount Credential Reader

Hanwha Vision Multi-Technology Mullion Keypad Reader Overview

Experience cutting-edge security with the Hanwha Vision Multi-Technology Mullion Keypad Reader, designed to offer versatile access control solutions. This streamlined device features 13.56 MHz (NFC), 125 kHz (PROX), and Bluetooth BLE 5.3 capabilities. Its robust construction, combined with IP65 rating and tamper detection, ensures reliable performance in any environment.

Product Features

• Dual Frequency Support: 13.56 MHz (NFC) and 125 kHz (PROX) technologies enable a wide range of credential compatibility.
• Bluetooth BLE 5.3: Provides enhanced connectivity options, enabling seamless integration with mobile devices for advanced access management.
• Auto-Detect Compatibility: Automatically adjusts for Wiegand or OSDP infrastructures, simplifying setup and enhancing usability.
• Remote Firmware Upgrade: Keep your device up-to-date effortlessly, allowing for radio enable/disable and control sequencing from anywhere.
• Universal Credential Support: Works with all Ethos-supported credentials, offering flexibility for diverse user needs.
• 10-Key Mechanical Keypad: Durable and user-friendly keypad for straightforward access input.
• Tamper Detection: Accelerometer-based detection provides reliable security alerts, protecting against unauthorized access attempts.
• Compact Size: Dimensions of 5.25" x 1.81" x 0.93" ensure that this keypad reader fits conveniently in various spaces.
• Power Versatility: Operates with power input of 5–24 VDC, accommodating a range of installation environments.
• Low Current Draw: Reliable performance with a current draw of only 500 mA @ 12 VDC, promoting energy efficiency.
• IP65 Rating: The IP65 rating ensures protection against dust and water, making it suitable for outdoor use.
• Regulatory Compliance: Meets FCC, IC, CE, UL294 standards along with OSDP Verified V2.2 for enhanced trustworthiness.
• Durable Materials: Built with UL94-V0, UL746C-F1 plastics for UV and water resistance, ensuring durability in demanding conditions.

Hanwha Vision Multi-Technology Mullion Keypad Reader Specifications
