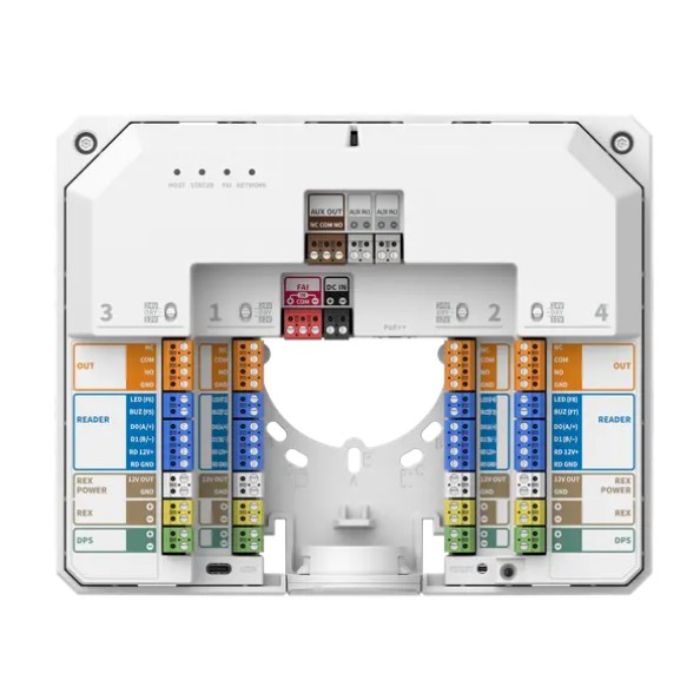

Hanwha Vision NHP-P400 4-Door IP Access Controller with PoE+

Powered by OnCAFE, IP Controller supporting (4) doors, featuring (4) Wiegand/OSDP reader ports (up to 8 OSDP Readers), (10) Supervised Inputs, up to (8) Unsupervised OSDP Flex Inputs, (4) Form-C wet relay outputs with dry/12VDC/24VDC power selector, Built in tamper monitoring, (1) Dedicated RJ-45 10/100 PoE+ Ethernet Port, and onboard power monitoring with memory retention. Supporting up to 250,000 cardholders, and 250,000 offline event cache. Secure operation through TLS 1.3 and AES-256 encryption. Power: PoE++, 12-24VDC, Current draw 780mA on PoE+, Dimensions: 7.24" x 7.24" x 1.67" (184mm x 184mm x 42.5mm).

Features

• 4 Doors​
• Direct-to-Cloud, StandaloneMode (EntryGuard)​ Communication Modes​​
• POE ++​ Powered​
​
• IK10 Rated​
• 10 supervised inputs​​
• 8 unsupervised Flex Inputs (OSDP mode)​​
• 250,000 credentials storage capacity​​
• Single Wiegand or (2) OSDP Readers for each of the 4 ports​​
• Case Tamper, Mount Tamper , Fire Alarm Input (FAI) UL 294 rating​​
• 4 REX terminals with 12v Power​​
• TPM with FIPS 140-3 Level 3​​
• PoE++ 12vDC/24vDC volt flexible power input / Dry Lock output​
