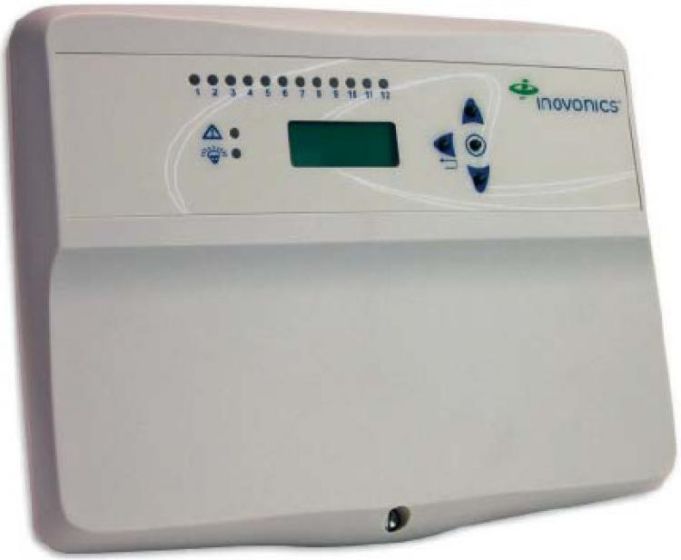

Alpha NC507ES 12 Relay Remote LCD Receiver

Alpha NC507ES 12 Relay Remote LCD Receiver Features

The NC507ES from Alpha is designed to allow users of the Tek-CARE®500 (TC500) Wireless Emergency Call System to connect external dome lamps and dialers to the system. This provides for an alternate annunciation path, in addition to the normal TekCARE®500 screen. The NC507ES is not dependent upon the Tek CARE®500's master station computer. It features 12 separate, dry-contact outputs that can be programmed for activation by up to 32 transmitters. The case has built-in tamper detection outputs for connection to an external alarm system. All dry contact outputs are individually configurable for latching, follower or momentary activation modes. The unit is designed for indoor use only, and cable access and connections are hidden. The face of the unit features a clean appearance with visual indication of the status via an LCD display. The SF501ES and SF502ES transmitters can be used with the NC507ES to trigger an external dialer, but these momentary transmitters require a separate reset button, and relays programmed as latching.

Features

• 12 dry-contact Form-C outputs: Enables connection of multiple devices for enhanced notification capabilities.
• Programmable duration for momentary output mode: Customizable settings ensure tailored operation for various applications.
• Wiring access via hidden port: Simplifies installation while maintaining a neat and unobtrusive appearance.
• 50-event log (first in, first out): Keeps track of the most recent activities for easy monitoring and troubleshooting.
• Status LEDs display current status of transmitters: Provides immediate visual feedback for quick assessments of system status.
• Screw terminal connections: Ensures secure and reliable connections for long-term use.
• Clean appearance for interior mounting: Blends seamlessly into environments while prioritizing aesthetics.

Alpha NC507ES Detailed Specifications
