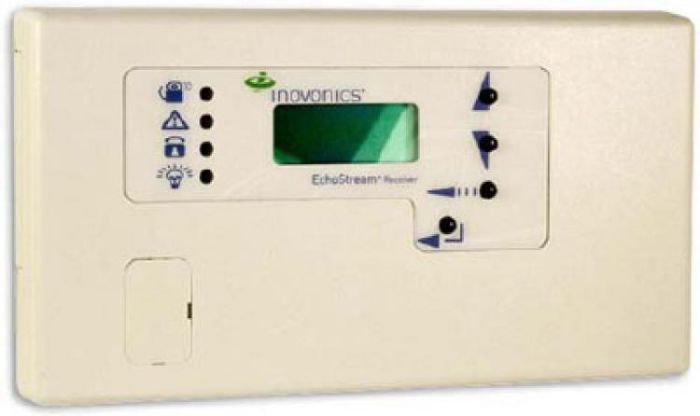

Alpha NC505ES 6 Relay Remote LCD Receiver

Alpha NC505ES Remote LCD Receiver Features

The NC505ES from Alpha is designed to allow users of the Tek-CARE®500 (TC500) Wireless Emergency Call System to connect external dome lamps and dialers to the system. This provides for an alternate annunciation path, in addition to the normal Tek-CARE®500 screen. The NC505ES is not dependent upon the Tek-CARE®500's master station computer. It features 6 separate, dry-contact outputs that can be programmed for activation by up to 16 unit transmitters. The case has built-in tamper detection outputs for connection to an external alarm system. All dry contact outputs are individually configurable for latching, follower or momentary activation modes. The unit is designed for indoor use only, and cable access and connections are hidden. The face of the unit features a clean appearance with visual indication of the status.

Features

• 6 dry-contact Form-C outputs: Provides versatile connection options for multiple devices.
• Screw terminal connections: Ensures secure and reliable wiring to external devices.
• Wiring access via hidden port: Allows for a tidy installation without visible cabling.
• Built-in tamper switch: Enhances security by alerting to unauthorized access.
• Programs without laptop or other computer: Facilitates easy setup and configuration in any location.
• LCD Display: Offers clear visibility of system status and settings.
• LEDs display current status of transmitters: Provides immediate feedback on transmitter activity.
• Functions independently of Tek-CARE®500: Ensures continued operation even if the master station fails.
• Clean appearance for interior mounting: Aesthetically pleasing design fits well in any environment.

Alpha NC505ES Detailed Specifications
