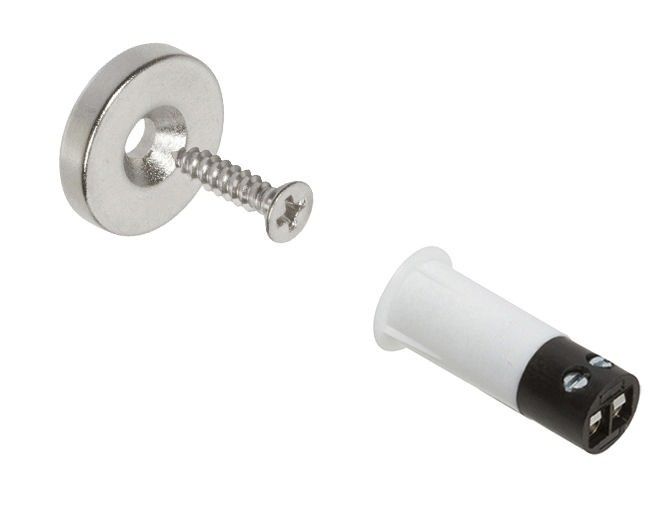

Nascom NC1175T600W-STFB Recessed 3/8" Stubby Terminal Press Fit Open Loop Switch with D0.600" Donut Magnet White

The NC1175T600W-STFB from Nascom is a recessed 3/8" stubby terminal press fit open loop switch with D0.600" donut magnet, white. The NC1175T 600 Series, mini 3/8” recessed screw terminal contact, protects all nonferrous (e.g. wood, aluminum and vinyl) doors and windows, in both residential and commercial settings. The NC1175T 600 is the installer’s choice of contact configuration where drill depth is critical and excellent air and side-to-side gap are required to prevent false alarms caused by shifting or warping doors and windows.

Nascom NC1175T600W-STFB Features

• Press Fit Switch: No glue is required, allowing for quick and easy installation, reducing labor time and ensuring a secure fit.
• Encapsulated Hermetically Sealed Contacts: Protects against dust and moisture, enhancing durability and reliability for long-term use.
• Wide Gap: N35 NdFeB rare earth magnet enables effective operation even with wider openings, preventing false alarms.
• Polypropylene Housings: Provides resistance to impact and environmental factors, ensuring the switch functions reliably in various conditions.
• Listed to UL634 Standard: Ensures high safety and performance standards, making it suitable for a wide range of installations.
