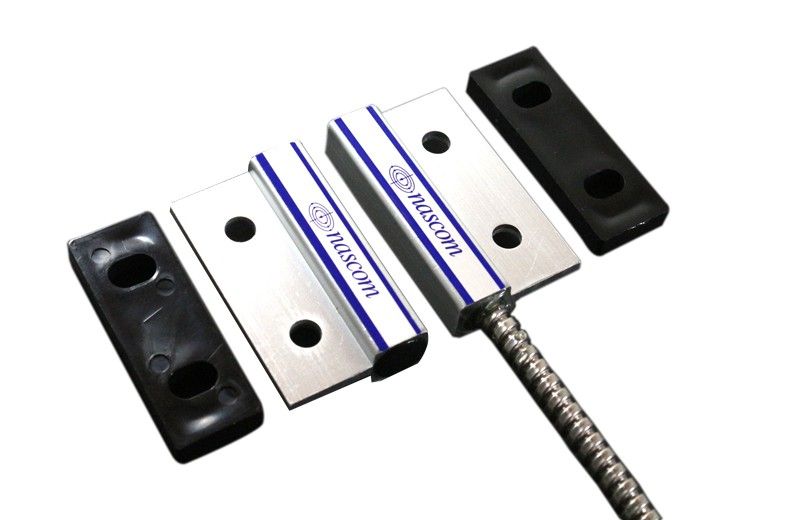

Nascom N505SU-ST2XSP N505SU Short Universal Flip Set with 2 Extra Spacers

The N505SU-ST2XSP from Nascom is a N505SU short universal flip set with 2 extra spacers. Nascom’s award winning N505SU SHORTYFLIP SWITCH is perfect for man doors. The unique flip option allows the switch to be mounted with the cable in either direction, without loss of gap. The SHORTYFLIP SWITCH combines the installers’ choice of contact configuration with an N35 NdFeB magnet for maximum gap performance. NO DEAD SPOT technology, in the N505AU closed loop versions, prevent false alarms caused by door misalignment.

Nascom N505SU-ST2XSP Features

• No Dead Spot Technology: Prevents false alarms due to door misalignment, ensuring reliable performance.
• Universal Mount: Flexible installation options suitable for various applications.
• Extra Wide Gap - N35 NdFeB Rare Earth Magnet: Offers superior sensitivity and wider operation gap for enhanced security.
• 36" 22AWG Wire Leads: Provides ample length for easy connectivity and installation.
• 24" Armored Cable Lead Protection: Ensures durability and protection against environmental hazards.
• Extruded: High-quality manufacturing process enhances product longevity.
• Anodized (Type II) Aluminum: Provides excellent corrosion resistance and aesthetic appearance.
• Fast And Easy Installation: Designed for efficient setup without compromising on performance.
• Listed To UL634 Standard: Meets industry standards for safety and reliability.

Additional Information for Nascom N505SU-ST2XSP

• Set: Switch/Magnet Special
• Color: Silver
• EndofLine (EOL) Resistors: No
• Flange: N
• Switch Size: L2.125" X W1.250" X H0.500"
• Magnet Size: L2.125" X W1.250" X H0.500"
• Termination: Armored Cable Over 22AWG UL 1061
• Circuit Configuration: Closed Loop
• Lead Length (in.): 24
• Standard Ohm Resistor Values: No
