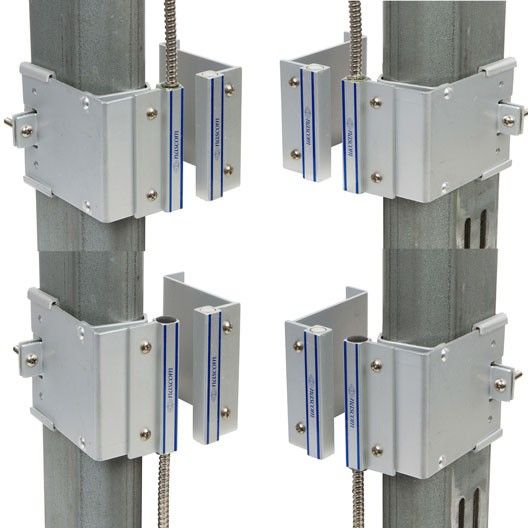

Nascom N505AUTMC-STDD 3" Overhead Door Rail Mount Double Pole Double Throw Magnet / Switch Set Featuring No Dead Spot Technology, Silver

The N505AUTMC-STDD from Nascom is a 3" overhead door rail mount double pole double throw magnet/switch set featuring No Dead Spot technology, silver. The N505AUTMC 3" Track Mount Flip Switch with universal magnet handles commercial and industrial overhead door applications. The Track Mount Flip Switch combines the installer’s choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance. The closed loop versions of the N505AUTMC prevent false alarms caused by the up and down movement of overhead doors with our unique No Dead Spot technology. The switch can be mounted with the cable in either direction, without loss of gap.

Nascom N505AUTMC-STDD Key Features

• No Dead Spot Technology: Prevents false alarms from overhead door movement, ensuring reliable operation.
• Extruded Anodized (Type II) Aluminum: Offers durability and resistance to corrosion for long-lasting performance.
• Quick Switch Install: Allows installation in less than 60 seconds, saving time for installers.
• Flip the Switch: Cable direction does not impact gap, enhancing installation versatility.
• Universal Mount: Compatible with various configurations, making it suitable for a wide range of overhead doors.
• 24" Stainless Steel Armored Cable Lead Protection: Provides added durability and protection against damage.
• 36" 22 AWG Wire Leads: Ensures a secure and reliable electrical connection.
• Listed to UL634 Standard: Complies with recognized safety standards for peace of mind.

Nascom N505AUTMC-STDD Detailed Specifications
