Nascom N505AUTMC-ST2CR 3" Overhead Door Rail Mount Dual Closed Loop Magnet / Switch Set Featuring No Dead Spot Technology, Silver

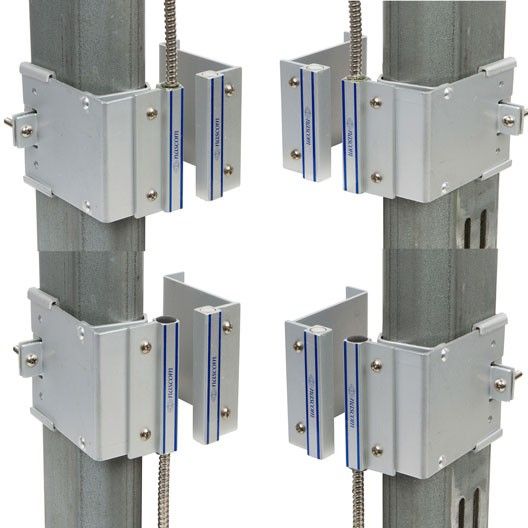

The N505AUTMC-ST2CR from Nascom is a 3" overhead door rail mount dual closed loop magnet / switch set featuring No Dead Spot technology, silver. The N505AUTM 3" TRACK MOUNT FLIP SWITCH with universal magnet handles commercial and industrial overhead door applications. The TRACK MOUNT FLIP SWITCH combines the installers choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance. The closed loop versions of the N505AUTMC prevent false alarms caused by the up and down movement of overhead doors with our unique NO DEAD SPOT technology. The switch can be mounted with the cable in either direction, without loss of gap.

Nascom N505AUTMC-ST2CR Features

• No Dead Spot Technology: Prevents false alarms caused by door movement, ensuring reliable operation.
• Extruded Anodized (Type II) Aluminum: Provides durability and resistance to corrosion, extending the product's lifespan.
• Quick Switch Install: Less than 60 seconds installation time for efficient set up.
• Flip the Switch: Gap is not impacted by cable direction, allowing for flexible installation options.
• Universal Mount: Compatible with a variety of overhead door applications, enhancing versatility.
• 24" Stainless Steel Armored Cable Lead Protection: Offers enhanced protection against wear and tear.
• 36" 22 AWG Wire Leads: Ensures reliable electrical connections and signals.
• Listed to UL634 Standard: Complies with stringent safety standards, ensuring high reliability.

Nascom N505AUTMC-ST2CR Detailed Specifications
