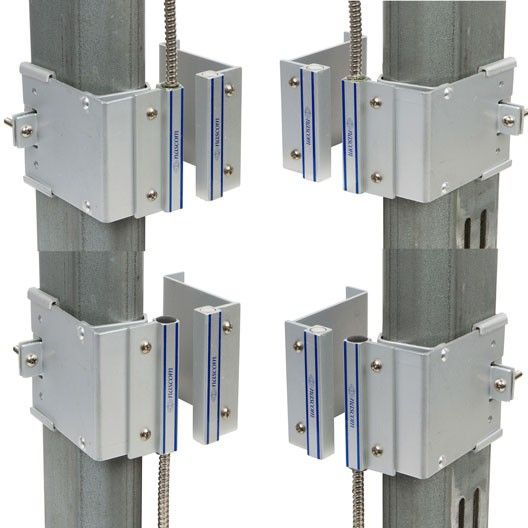

Nascom N505AUTMC-ST036 Overhead Door Rail (3") Mount Magnet/Switch Set, 3 Foot Armor Cable

The N505AUTMC-ST036 from Nascom is an overhead door rail (3") mount magnet/switch set, 3 foot armor cable. Nascom’s N505AUTM 3" TRACK MOUNT FLIP SWITCHTM with universal magnet handles commercial and industrial overhead door applications. The TRACK MOUNT FLIP SWITCHTM combines the installers’ choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance. The closed loop versions of the N505AUTMC prevent false alarms caused by the up and down movement of overhead doors with our unique NO DEAD SPOT technology. The switch can be mounted with the cable in either direction, without loss of gap.

Nascom N505AUTMC-ST036 Key Features

• No Dead Spot Technology: Prevents false alarms from overhead door movement, ensuring reliable operation.
• Extruded Anodized (Type II) Aluminum: Durable and corrosion-resistant material for longevity in various environments.
• Quick Switch Install - Less Than 60 Seconds: Allows for fast and efficient installation, minimizing downtime.
• Flip The Switch - Gap Is Not Impacted By Cable Direction: Flexible installation options without compromising functionality.
• Universal Mount: Compatible with a wide range of installations for added versatility.
• 24" Stainless Steel Armored Cable Lead Protection: Enhances durability by safeguarding the cable from damage.
• 36" 22AWG Wire Leads: Provides ample length for easy connectivity during installation.
• Listed To UL634 Standard: Certified for safety and reliability in commercial applications.

Nascom N505AUTMC-ST036 Additional Information

• Set: Switch/Magnet Special
• Color: Silver
• EndofLine (EOL) Resistors: No
• Flange: N
• Switch Size: L3" X W1.250" X H0.500"
• Magnet Size: L3" X W1.250" X H0.500"
• Termination: Armored Cable Over 22AWG UL 1061
• Circuit Configuration: Closed Loop
• Lead Length (in.): 36
• Standard Ohm Resistor Values: No

Nascom N505AUTMC-ST036 Specifications
