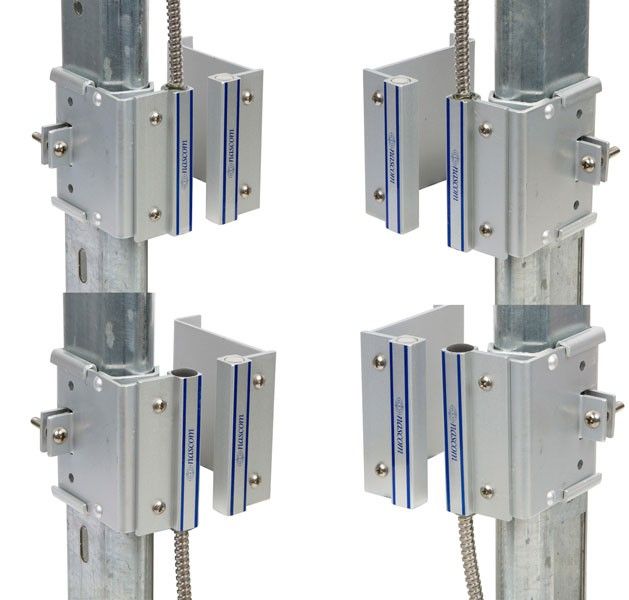

Nascom N505AUTM-STDD 2-1/4" Overhead Door Rail Mount Double Pole Double Throw Magnet / Switch Set Featuring No Dead Spot Technology, Silver

The N505AUTM-STDD from Nascom is a 2-1/4" overhead door rail mount double pole double throw magnet / switch set featuring No Dead Spot technology, silver. The N505AUTM 2 1/4” TRACK MOUNT FLIP SWITCHTM with universal magnet handles commercial and industrial overhead door applications. The TRACK MOUNT FLIP SWITCH combines the installers’ choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance. The closed loop versions of the N505AUTM prevents false alarms caused by the up and down movement of overhead doors with our unique NO DEAD SPOT technology. The switch can be mounted with the cable in either direction, without loss of gap.

Nascom N505AUTM-STDD Unique Features

• No Dead Spot Technology: Prevents false alarms from movement of overhead doors, ensuring reliable performance.
• Extruded Anodized (Type II) Aluminum: Provides durability and resistance to corrosion, ideal for long-term use in various environments.
• Quick Switch Install: Less than 60 seconds for setup, saving valuable time during installation.
• Flip the Switch: Gap is not impacted by cable direction, offering flexibility in installation.
• Universal Mount: Versatile mounting options suitable for different door applications.
• 24" Stainless Steel Armored Cable Lead Protection: Enhances durability and protects against wear and tear.
• 36" 22 AWG Wire Leads: Provides ample length for easy connections.
• Listed to UL634 Standard: Ensures compliance with safety and performance standards.

Nascom N505AUTM-STDD Detailed Specifications
