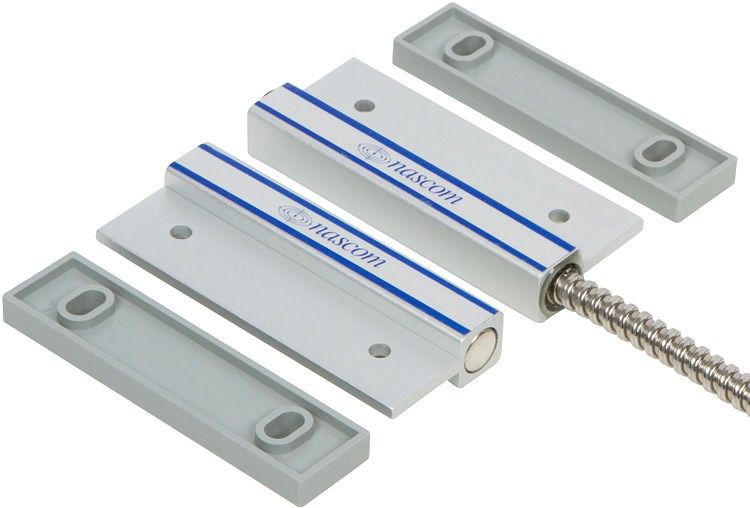

Nascom N505AU-STFB2-2KPRD N505AU Universal Flip Open Loop Set W 2.2K Res In Parallel and A Red Dot

The N505AU-STFB2-2KPRD from Nascom is a N505AU universal flip open loop set with a 2.2K resistor in parallel and a red dot. Nascom’s award-winning N505AU FLIP SWITCH™ is perfect for man doors. The unique flip option allows the switch to be mounted with the cable in either direction, without loss of gap. The FLIP SWITCH™ combines the installers’ choice of contact configuration with an N35 NdFeB magnet for maximum gap performance. NO DEAD SPOT technology, in the N505AU closed loop versions, prevents false alarms caused by door misalignment.

Nascom N505AU Flip Switch Features

• No Dead Spot Technology: Prevents false alarms due to door misalignment, ensuring reliability.
• Universal Mount: Flexibility in installation options allows for easy adaptation to various door configurations.
• Extra Wide Gap - N35 NdFeB Rare Earth Magnet: Enhances performance with maximized distance, improving functionality.
• 36" 22AWG Wire Leads: Provides ample length for installation, simplifying the process.
• 24" Armored Cable Lead Protection: Ensures durability and protects wiring against damage.
• Extruded: Designed for strength and longevity, ideal for continuous use.
• Anodized (Type II) Aluminum: Offers superior corrosion resistance for increased lifespan.
• Fast And Easy Installation: Speedy setup helps reduce labor time for installers.
• Listed To UL634 Standard: Guarantees compliance with safety standards for peace of mind.

Nascom N505AU Additional Information

• Set: Switch/Magnet Special
• Color: Silver
• EndofLine (EOL) Resistors: PAR
• Flange: N
• Switch Size: L3" X W1.250" X H0.500"
• Magnet Size: L3" X W1.250" X H0.500"
• Termination: Armored Cable Over 22AWG UL 1061 + Red DOT
• Lead Length (in.): 24
• Standard Ohm Resistor Values: 2.2K

Nascom N505AU Specifications
