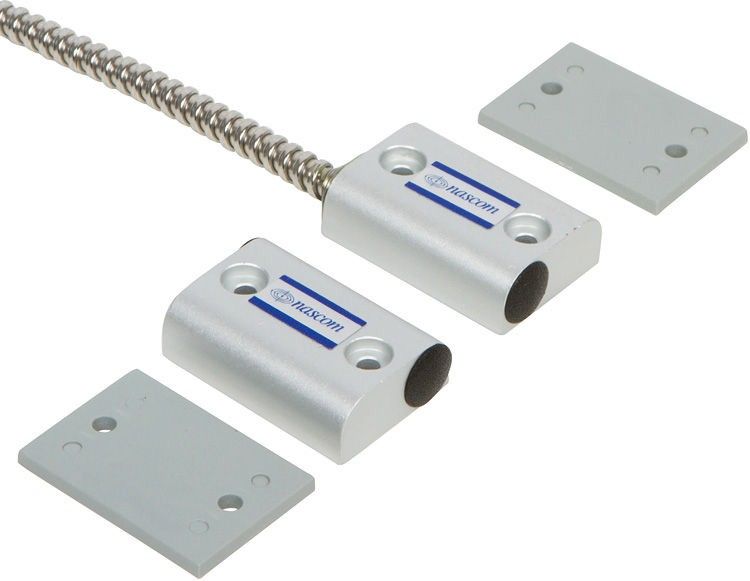

Nascom N505AS-ST2-2K N505AS Short Set with 2.2K Resistor In Series

The N505AS-ST2-2K from Nascom is a N505AS short set with a 2.2K resistor in series. Nascom’s N505AS is a short, 2" block switch, designed for man doors. It combines the installers’ choice of contact configuration with an N35 NdFeB magnet for maximum gap performance. The closed loop version of the N505AS prevents false alarms caused by warping or shifting of doors, and features our unique NO DEAD SPOT technology.

Nascom N505AS-ST2-2K Features

• No Dead Spot Technology: Ensures reliable operation by eliminating false alarms that can occur due to door warping.
• 24" Armored Cable Lead Protection: Provides durability and extra protection for the cable, enhancing the longevity of the installation.
• Extra Wide Gap - N35 NdFeB Rare Earth Magnet: Maximizes gap performance, allowing for optimal placement and use in various door configurations.
• 36" 22AWG Wire Leads: Offers flexibility in installation and ensures reliable connectivity for optimal performance.
• Listed To UL634 Standard: Meets industry safety and performance standards, ensuring reliability for critical applications.
• Extruded Anodized (Type II) Aluminum: Provides corrosion resistance and durability for long-lasting performance in various environments.

Nascom N505AS-ST2-2K Additional Information

• Set: Switch/Magnet Special
• Color: Silver
• EndofLine (EOL) Resistors: SER
• Flange: N
• Switch Size: L1.625" X W1.125" X H0.500"
• Magnet Size: L1.625" X W1.125" X H0.500"
• Termination: Armored Cable Over 22AWG UL 1061 + Red DOT
• Circuit Configuration: Closed Loop
• Lead Length (in.): 24
• Standard Ohm Resistor Values: 2.2K

Nascom N505AS-ST2-2K Specifications
