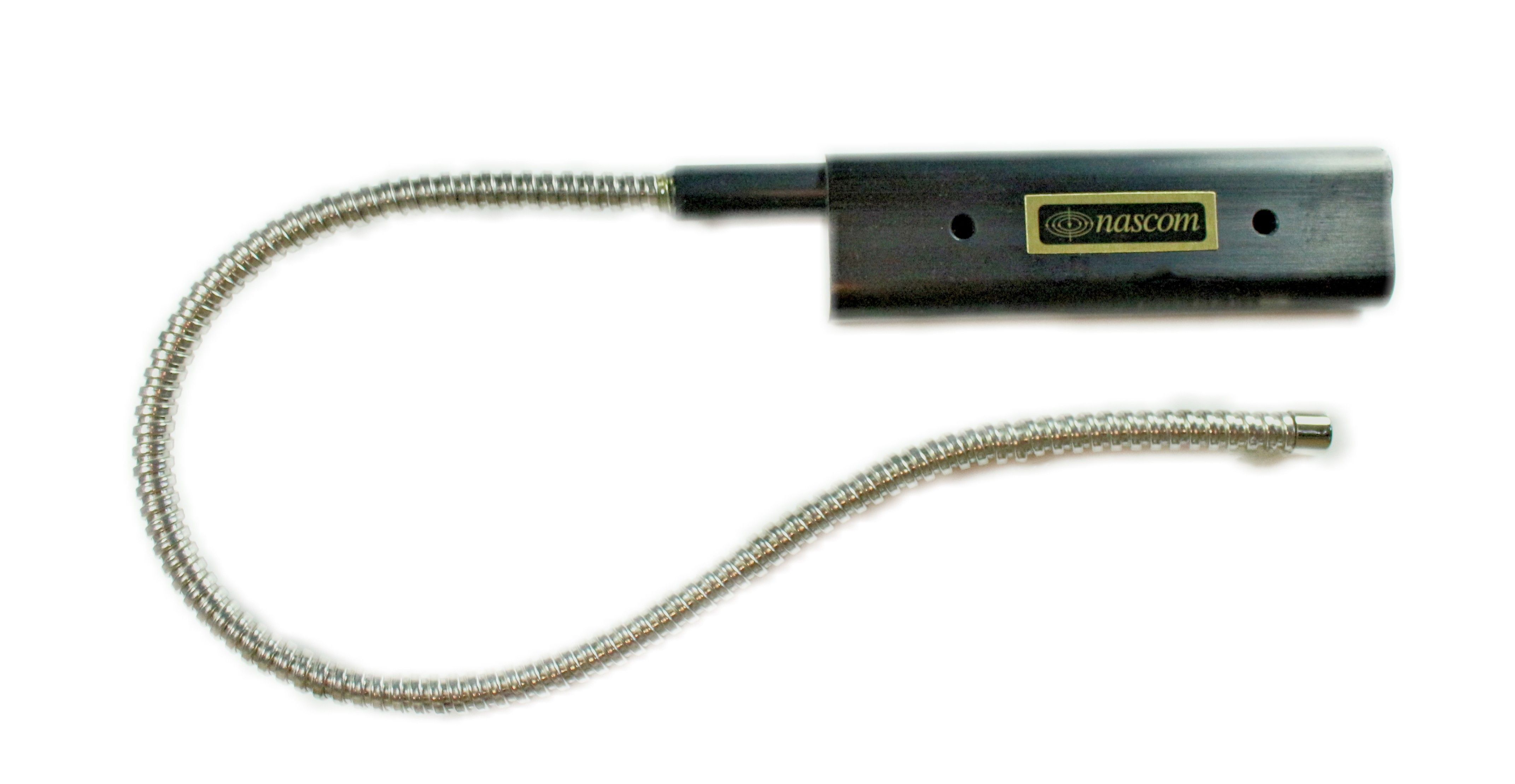

Nascom N505A-STMPA048 Magnetic Pull-A-Part Contact with 4 Foot Armored Cable Leads

The N505A-STMPA048 from Nascom is a magnetic pull-a-part contact with 4 foot armored cable leads. Nascom’s N505A/STMPA Magna Pull is the most durable on the market today. There are no plastic parts to break. Magnets won’t fall out of the housing & the switch won’t bend or break. Our magnet housing is bar stock aluminum and the switch housing is tubed aluminum filled with epoxy protecting the reed switch in side. This switch is used for protecting gates of all types and commercial trailers connected to distribution warehouse dock alarm systems.

Nascom N505A-STMPA048 Features

• Durable Construction: Anodized Aluminium Housing ensures maximum durability against harsh environments.
• Enhanced Protection: Armored Cable Lead Protection safeguards the internal wiring for optimal performance.
• Easy Installation: Fast And Easy Installation minimizes downtime and streamlines setup processes.
• Optional High Security: High Security Option Available provides additional peace of mind for sensitive locations.

Nascom N505A-STMPA048 Additional Information

• Set: Switch/Magnet Special
• Color: Black
• EndofLine (EOL) Resistors: No
• Flange: N
• Switch Size: D0.375" X L3.500"
• Magnet Size: L3.750" X W1.125" X H0.500"
• Termination: Armored Cable Over 22AWG UL 1061
• Circuit Configuration: Closed Loop
• Lead Length: 48 inches
• Standard Ohm Resistor Values: No
