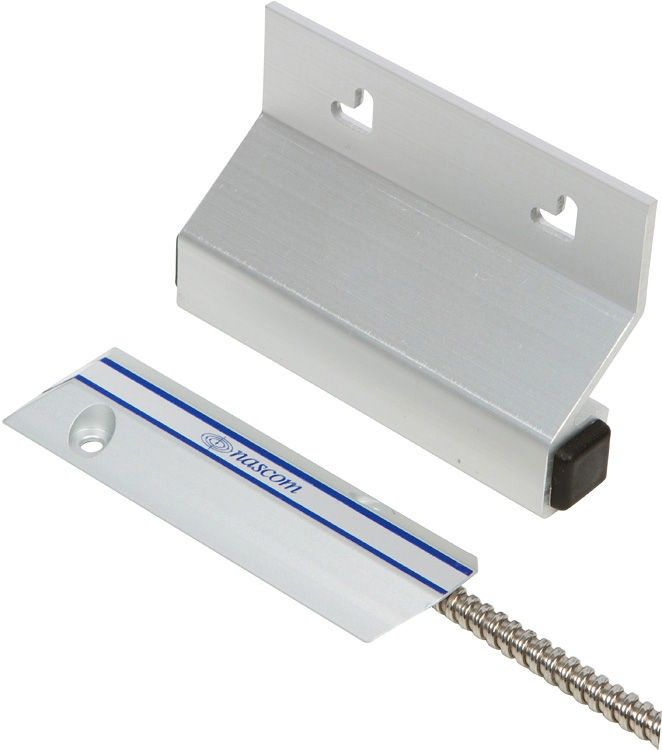

Nascom N205AU-STFB2-2KSP N205AU Universal Mount Open Loop Set with 2.2K Res In Parallel

The N205AU-STFB2-2KSP from Nascom is a N205AU universal mount open loop set with 2.2K resistor in parallel. Nascom’s N205AU is a wide gap standard size floor mount for commercial and industrial overhead door applications with a universal magnet. The N205AU combines the installers’ choice of contact configuration for maximum gap performance. The closed loop versions of the N205AU prevent false alarms caused by the side to side shifting of overhead doors with our unique NO DEAD SPOT technology.

Nascom N205AU-STFB2-2KSP Unique Features

• No Dead Spot Technology: Prevents false alarms caused by shifting overhead doors, ensuring reliable performance.
• Universal Mount: Offers flexibility for installation across different overhead door applications.
• Extra Wide Gap - N35 NdFeB Rare Earth Magnet: Enhances the range of detection, making it suitable for various setups.
• 36" 22AWG Wire Leads: Provides ample length for easy installation in diverse environments.
• 24" Armored Cable Lead Protection: Ensures durability and protection against environmental wear and tear.
• Extruded Anodized (Type II) Aluminum: Guarantees a robust and corrosion-resistant construction for long-term use.
• Industry Standard Switch Mounting Holes: Simplifies installation process by aligning with common mounting standards.
• Listed To UL634 Standard: Provides assurance of product safety and reliability for commercial applications.

Nascom N205AU-STFB2-2KSP Additional Information

• Set: Switch/Magnet Special
• Color: Silver
• EndofLine (EOL) Resistors: SER/PAR
• Flange: N
• Switch Size: L4.30" X W1.375" X H0.375"
• Magnet Size: L4.300" X W0.812" X H0.812"
• Termination: Armored Cable Over 22AWG UL 1061 Brown, White & Red
• Circuit Configuration: SPDT
• Lead Length (in.): 24
• Standard Ohm Resistor Values: 2.2K
