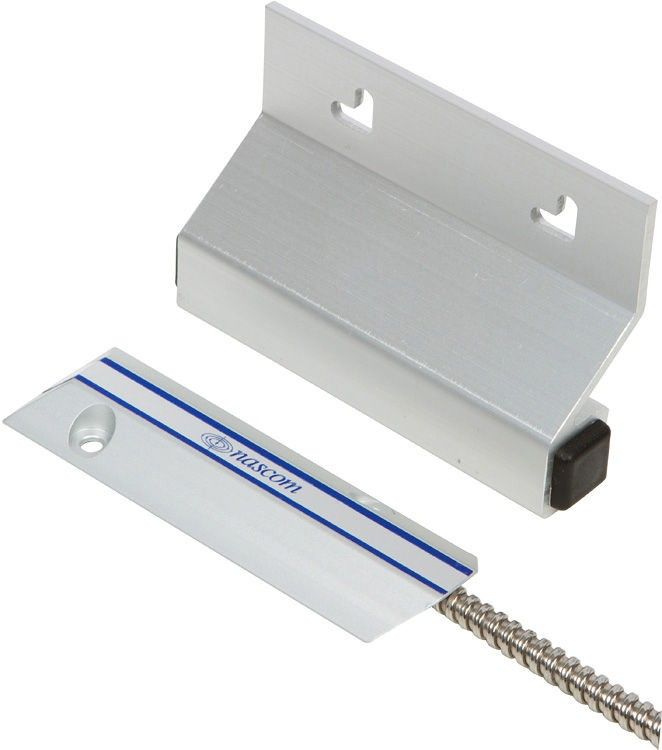

Nascom N205AU-STFB2-2KPRD N205AU Universal Mount Open Loop Set with 2.2K Res In Parallel and A Red Dot

The N205AU-STFB2-2KPRD from Nascom is a N205AU universal mount open loop set with a 2.2K resistor in parallel and a red dot. Nascom’s N205AU is a wide gap standard size floor mount for commercial and industrial overhead door applications with a universal magnet. The N205AU combines the installers’ choice of contact configuration for maximum gap performance. The closed loop versions of the N205AU prevent false alarms caused by the side to side shifting of overhead doors with our unique NO DEAD SPOT technology

Nascom N205AU-STFB2-2KPRD Features

• No Dead Spot Technology: Prevents false alarms from shifting doors, ensuring reliable performance.
• Universal Mount: Simplifies installation across various applications.
• Extra Wide Gap - N35 NdFeB Rare Earth Magnet: Provides enhanced sensitivity and detection range.
• 36" 22AWG Wire Leads: Offers flexibility in wiring and setup for easier installations.
• 24" Armored Cable Lead Protection: Ensures durability against damage in challenging environments.
• Extruded Anodized (Type II) Aluminum: Enhances strength and corrosion resistance, prolonging product life.
• Industry Standard Switch Mounting Holes: Guarantees compatibility with existing setups for hassle-free installation.
• Listed To UL634 Standard: Confirms compliance with safety and performance standards.

Nascom N205AU-STFB2-2KPRD Additional Information

• Set: Switch/Magnet Special
• Color: Silver
• EndofLine (EOL) Resistors: PAR
• Flange: N
• Switch Size: L4.30" X W1.375" X H0.375"
• Magnet Size: L4.300" X W0.812" X H0.812"
• Termination: Armored Cable Over 22AWG UL 1061 Brown/White & Red
• Circuit Configuration: SPDT
• Lead Length (in.): 24
• Standard Ohm Resistor Values: 2.2K

Nascom N205AU-STFB2-2KPRD Specifications
