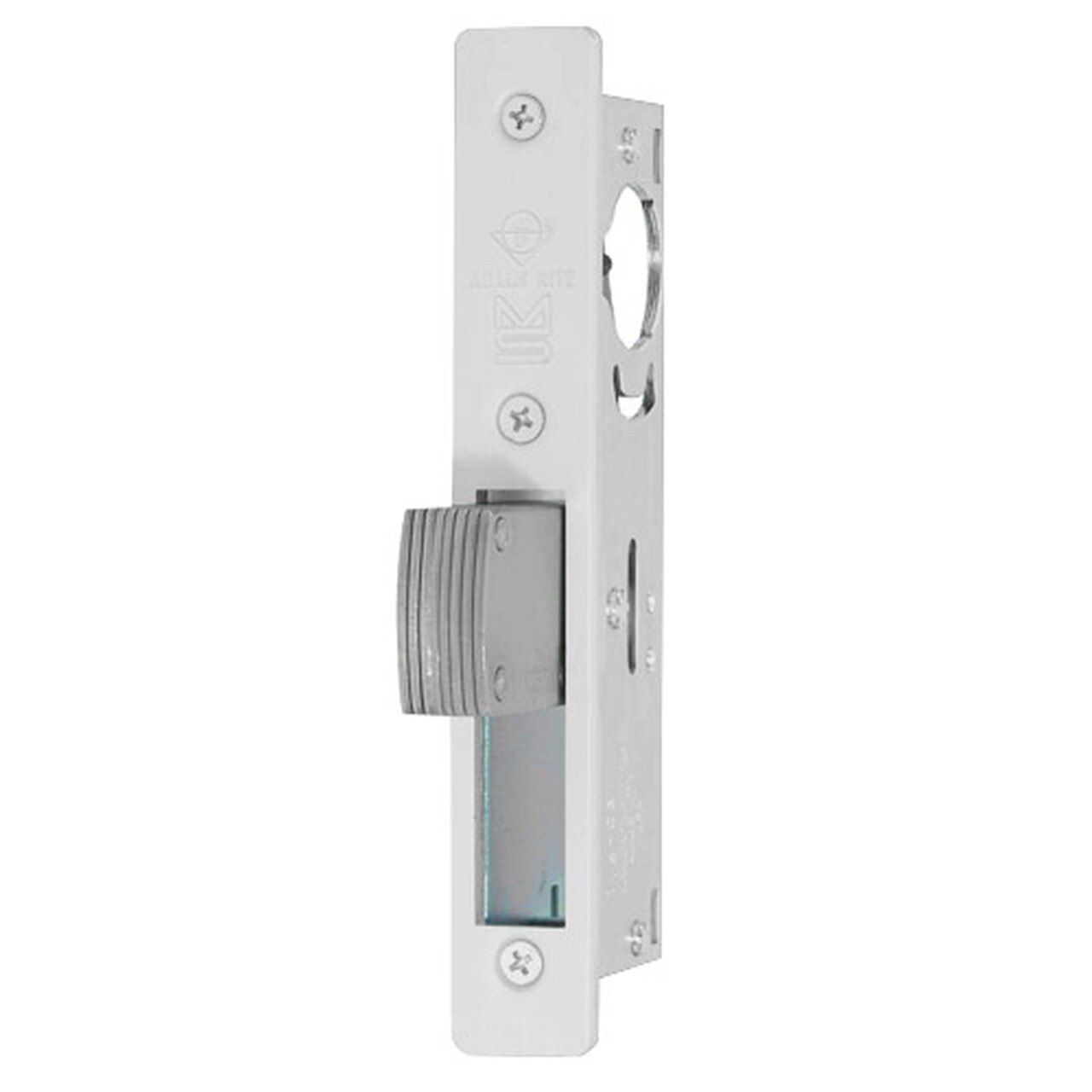

Adams Rite MS1951-410-628 Deadlock with Straight Bolt and 1-1/2" Backset in Clear Anodized
- Clear Anodized finish
- Cylinder Backset: 1-1/2"
- Case is made of fully stainless steel with internal components that measures 1" x 6" x depth (depth varies by backset)
- Straight bolt made of eight ply laminated stainless steel that measures 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw
- Radius faceplate measures 1" x 6-7/8"
The MS1951-410-628 from Adams Rite is a deadlock with straight bolt and 1-1/2" backset in clear anodized. The MS1951 Series Deadlocks utilizes a laminated stainless steel bolt which is activated by a pivot mechanism to provide the maximum security for a single leaf narrow stile door such that even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. It operates in such a way that the 360 degree turn of key or thumbturn throws or retracts the counterbalanced bolt and the key can be removed only when bolt is in a positively locked or unlocked position. The lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides. The cylinder must have MS dimensioned cam.
Features
- Clear Anodized finish: Enhances durability and corrosion resistance while providing a sleek appearance.
- Cylinder Backset: 1-1/2": Compatible with various door configurations, allowing for easy installation.
- Fully stainless steel case: Made with high-quality materials measuring 1" x 6" with depth varying by backset, ensuring long-lasting performance.
- Straight bolt: Composed of eight ply laminated stainless steel, measuring 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw, providing enhanced security.
- Radius faceplate: Measuring 1" x 6-7/8", designed for a refined look and easy installation.
- Handed operation - Non Handed: Versatile for various door configurations, simplifying installation and use.
- Cylinder not included: Provides flexibility to choose a compatible cylinder that meets your needs.
- Operable by standard mortise cylinder: Accepts a 1-5/32" diameter mortise cylinder with MS cam, ensuring compatibility and ease of use.
- Grade 1 strength: Meets high standards for strength and durability, offering peace of mind in security.
- Strike not included: Allows for customization based on your specific installation requirements.
Adams Rite MS1951-410-628 Deadlock Specifications
| Feature | Details |
| Finish | Clear Anodized |
| Cylinder Backset | 1-1/2" |
| Case Dimensions | 1" x 6" (depth varies by backset) |
| Straight Bolt Dimensions | 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw |
| Faceplate Dimensions | 1" x 6-7/8" |
| Operation | Handed operation - Non Handed |
| Cylinder Requirement | Standard 1-5/32" diameter mortise cylinder with MS cam |
| Grade | Grade 1 |
| Strike Included | No |
SKU  | MS1951-410-628 |
|---|---|
| Manufacturer | Adams Rite |
| Type | Deadbolt |
