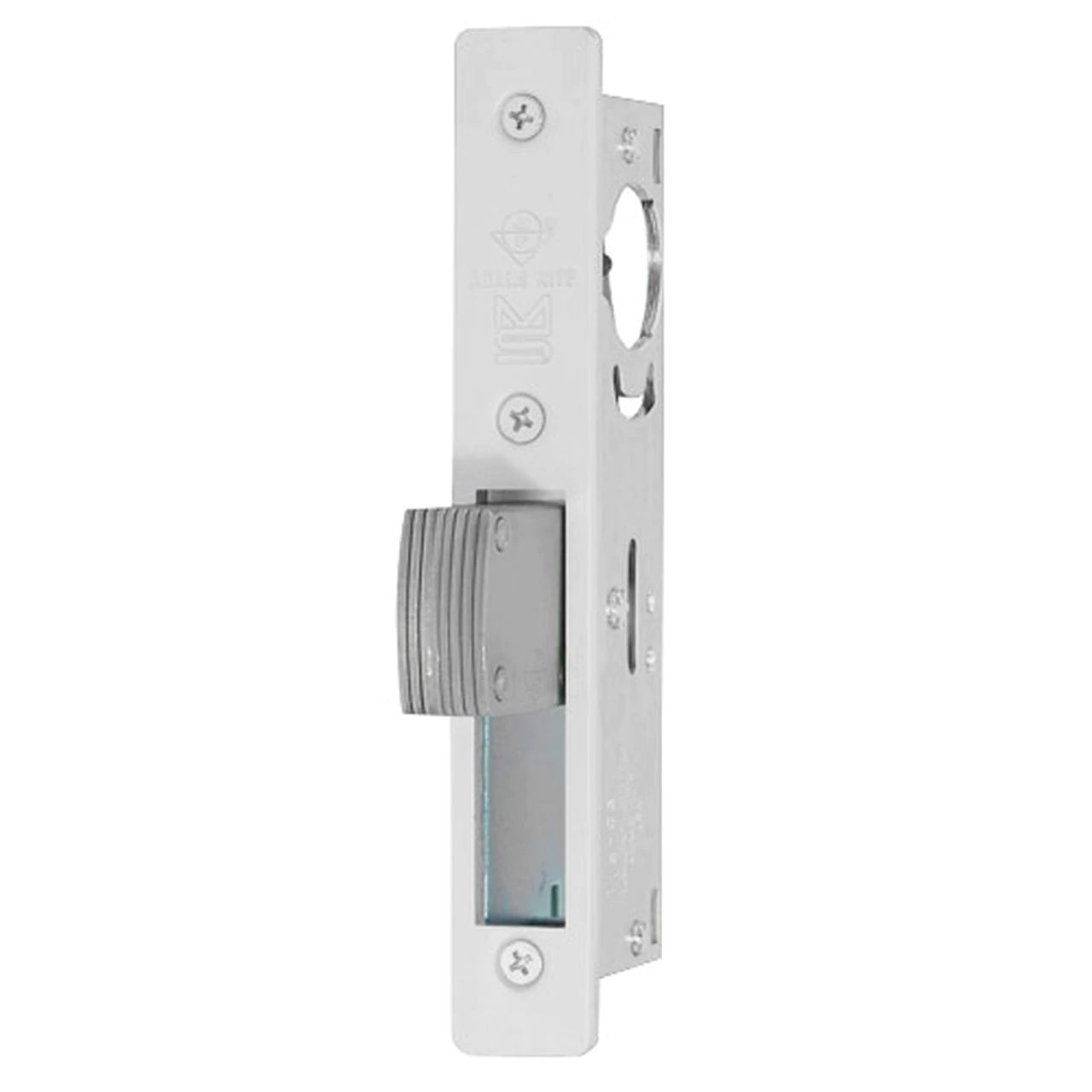

Adams Rite MS1951-210-628 Deadlock with Straight Bolt and 31/32" Backset in Clear

SKU
MS1951-210-628
Model No
MS1951-210-628
$91.25
Qty:
Product Highlights
    • Clear Anodized finish
    • Cylinder Backset: 31/32"
    • Case is made of fully stainless steel with internal components that measures 1" x 6" x depth (depth varies by backset)
    • Straight bolt made of eight ply laminated stainless steel that measures 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw
    • Radius faceplate measures 1" x 6-7/8"

The MS1951-210-628 from Adams Rite is a deadlock with straight bolt and 31/32" backset in clear. The MS1951 series Deadlocks utilizes a laminated stainless steel bolt which is activated by a pivot mechanism to provide the maximum security for a single leaf narrow stile door such that even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. It operates in such a way that the 360 degree turn of key or thumbturn throws or retracts the counterbalanced bolt and the key can be removed only when bolt is in a positively locked or unlocked position. The lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides. The cylinder must have MS dimensioned cam.

Features

  • Clear Anodized finish
  • Cylinder Backset: 31/32"
  • Case is made of fully stainless steel with internal components that measures 1" x 6" x depth (depth varies by backset)
  • Straight bolt made of eight ply laminated stainless steel that measures 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw
  • Radius faceplate measures 1" x 6-7/8"
  • Handed operation - Non Handed
  • Cylinder is not included
  • MS1951 Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS cam
  • Grade 1 strength
  • Strike not included
SKU  MS1951-210-628
Manufacturer  Adams Rite
TypeDeadbolt
