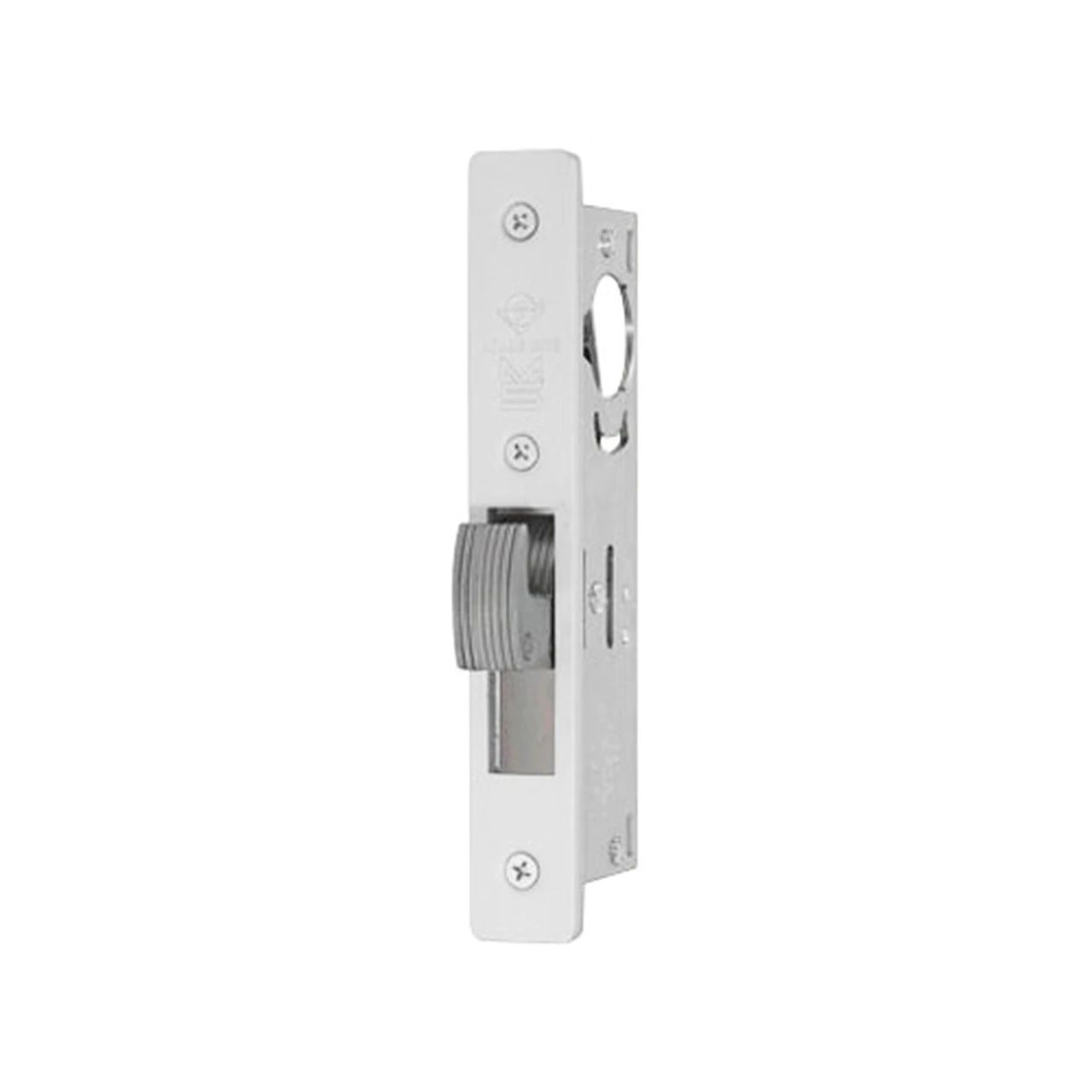

Adams Rite MS1950-350-628 Deadlock with Hookbolt and 1-1/8" Backset in Clear

The MS1950-350-628 from Adams Rite is a deadlock with hookbolt and 1-1/8" backset in clear. The MS1950 series Deadlocks utilizes a laminated stainless steel bolt which is activated by a pivot mechanism to provide the maximum security for a single leaf narrow stile door such that even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. It operates in such a way that the 360 degree turn of key or thumbturn throws or retracts the counterbalanced bolt and the key can be removed only when bolt is in a positively locked or unlocked position. The lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides. The cylinder must have MS dimensioned cam.

Features

• Clear Anodized finish: Provides a sleek, durable surface that resists wear and corrosion.
• Cylinder Backset: 1-1/8", ensuring compatibility with standard door fittings.
• Fully stainless steel case: Ensures maximum durability with internal components measuring 1" x 6" x varying depth for longevity.
• Hookbolt construction: Manufactured from eight ply laminated stainless steel measuring 5/8" x 1-3/8" x 2-7/8" with a 1-3/8" throw for heightened security.
• Flat faceplate dimensions: 1" x 6-7/8", allowing for easy installation and seamless integration.
• Non Handed operation: Flexible installation option suitable for both left and right-hand doors.
• Cylinder not included: Allows for customization based on user preference for enhanced security solutions.
• Compatible with standard cylinders: Operable by any 1-5/32" diameter mortise cylinder with MS cam, providing versatility.
• Grade 1 strength: Ensures top-tier security that meets rigorous standards for residential and commercial applications.
• Strike not included: Option to choose a strike that best fits your installation needs.

Adams Rite MS1950-350-628 Detailed Specifications
