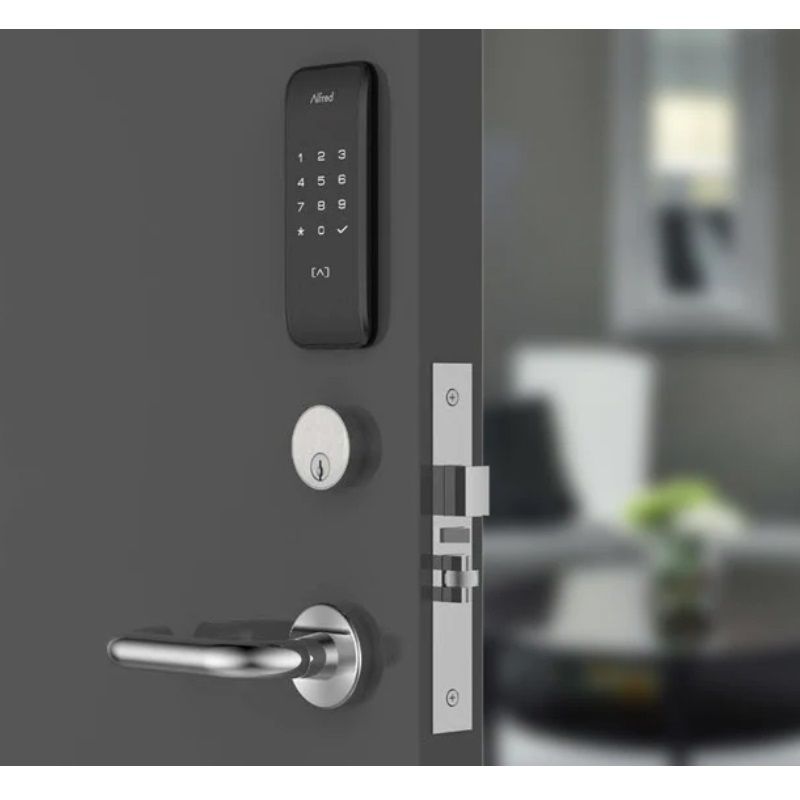

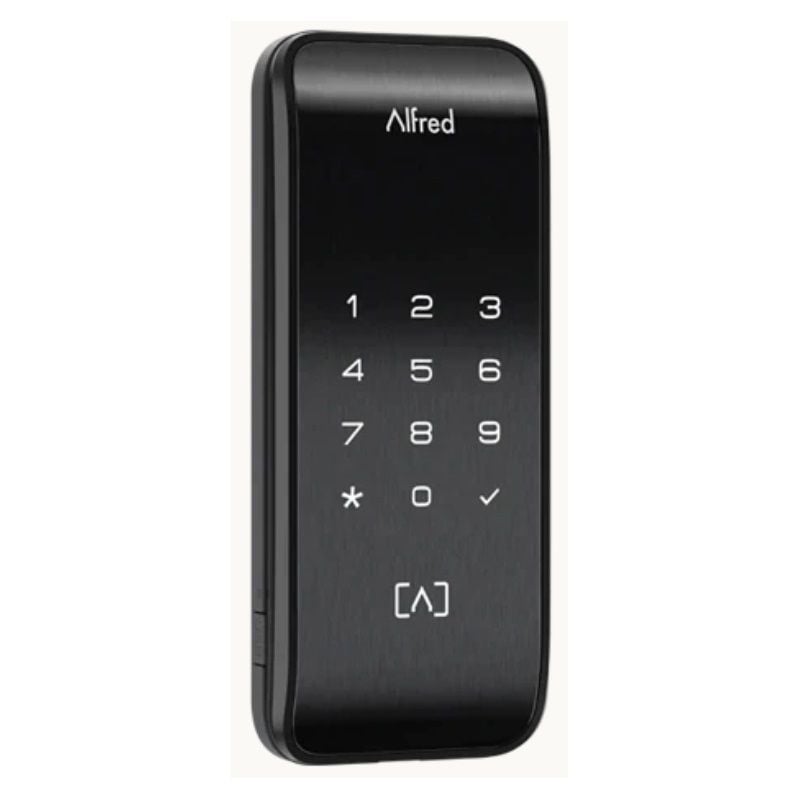

Alfred ML2-L-BL ML2 Mortise Lock Black Pin, Bluetooth and RFID - Smart Panel with Mortise Lockset + Lever + Cylinder
- Patent-pending, easy retrofit design. Can be installed to control most standard North American mechanical mortise locks
- Supports all major keyways and high security cylinder systems.
- Limitless design and application potential. Choose the lock manufacturer, lever styles, finishes and keyways of choice. Alfred brings the smarts
- Meets residential high-rise fire and emergency egress codes. (3HR Fire)
- Rechargeable Lithium-Ion battery included

The Alfred ML2 smart door lock combines a sophisticated and modern design aesthetic with advanced features and durability that is perfect for residential, commercial and multi-family properties. It is easy to use and install and allows you to manage access with up to 250 unique PIN codes and 250 RFID access cards (MIFARE). You can program, control, monitor your door lock using the Alfred Home app, and the door position sensor detects whether your door is open or closed. With optional Z-Wave Plus V2 or Zigbee 3.0 (add-on modules sold separately), you can connect and control your lock with most smart home hub and security systems. ML2 Series locks are also compatible with the Alfred connect (WB1) Wi-Fi bridge (Sold separately), allowing full remote control and monitoring of your lock via the Alfred Home App, as well as Google Home and Alexa support.
Features
- Patent-pending design: Easy retrofit that can be installed to control most standard North American mechanical mortise locks.
- High security compatibility: Supports all major keyways and high security cylinder systems.
- Customizable design: Choose from a variety of lock manufacturers, lever styles, finishes, and keyways.
- Safety compliance: Meets residential high-rise fire and emergency egress codes (3HR Fire).
- Rechargeable battery: Comes with a lithium-ion battery for long-lasting performance.
- Optional long range power adapter: Wi-Charge enables limitless long-term power.
- Mobile notifications: Receive alerts about who is entering your house and when.
- Smart unlocking: Latch and deadbolt can be unlocked via smartphone or PIN codes.
- Pin code storage: Store up to 250 unique PIN codes with lengths of 4-10 digits.
- Flexible pin codes: Schedule, set time-sensitive, or recurring pin codes to meet any needs.
- RFID support: Store up to 250 unique RFID cards for additional access options.
- Touch-sensitive entry: Features a touch-sensitive screen for PIN code and RFID card entry.
- Bluetooth connectivity: Easy connection to your mobile device.
- Multi-language voice prompts: Available in English, French, Spanish, Portuguese, and Mandarin.
- Integrated door position sensor: Standard feature to detect if the door is open or closed.
- Hardwire support: 12V/24V hardwiring options available.
- Smart home compatibility: Optional Z-Wave, Zigbee, and WiFi technologies enhance connectivity.
Alfred ML2-L-BL Smart Lock Features
- YOUR SMARTPHONE IS THE SMART KEY: Control your lock using the Alfred Home app and open your door from anywhere with Alfred Connect.
- Integration Bridge: Alfred Connect WiFi Integration Bridge available.
- Modular technology: Alfred Z-Wave 700 or Zigbee Modules for expanded functionality.
- Wireless power options: WiCharge Wireless Power Adapter available for limitless power supply.
Detailed Specifications for Alfred ML2-L-BL
| Finish: | Black (Contact us for custom finish options) |
| Dimension: | 2.67” x 6.39” (6.8cm x 16.2cm) |
| Lock Handing: | Reversible |
| Touch Keypad: | Illuminated 12 button keypad |
| RFID Reader: | MIFARE 1, S50, S70, 13.56 MHz cards or fobs |
| Length of Pin Code: | 4-10 Digits |
| Power: | Rechargeable Lithium-Ion battery included or optional Wi-Charge Wireless Power Adapter |
| Emergency Power Port: | Yes – USB-C |
| Temperature Tested: | -35 C to +66 C |
| Door Thickness: | 40-50mm (Contact for Custom Thicknesses) |
