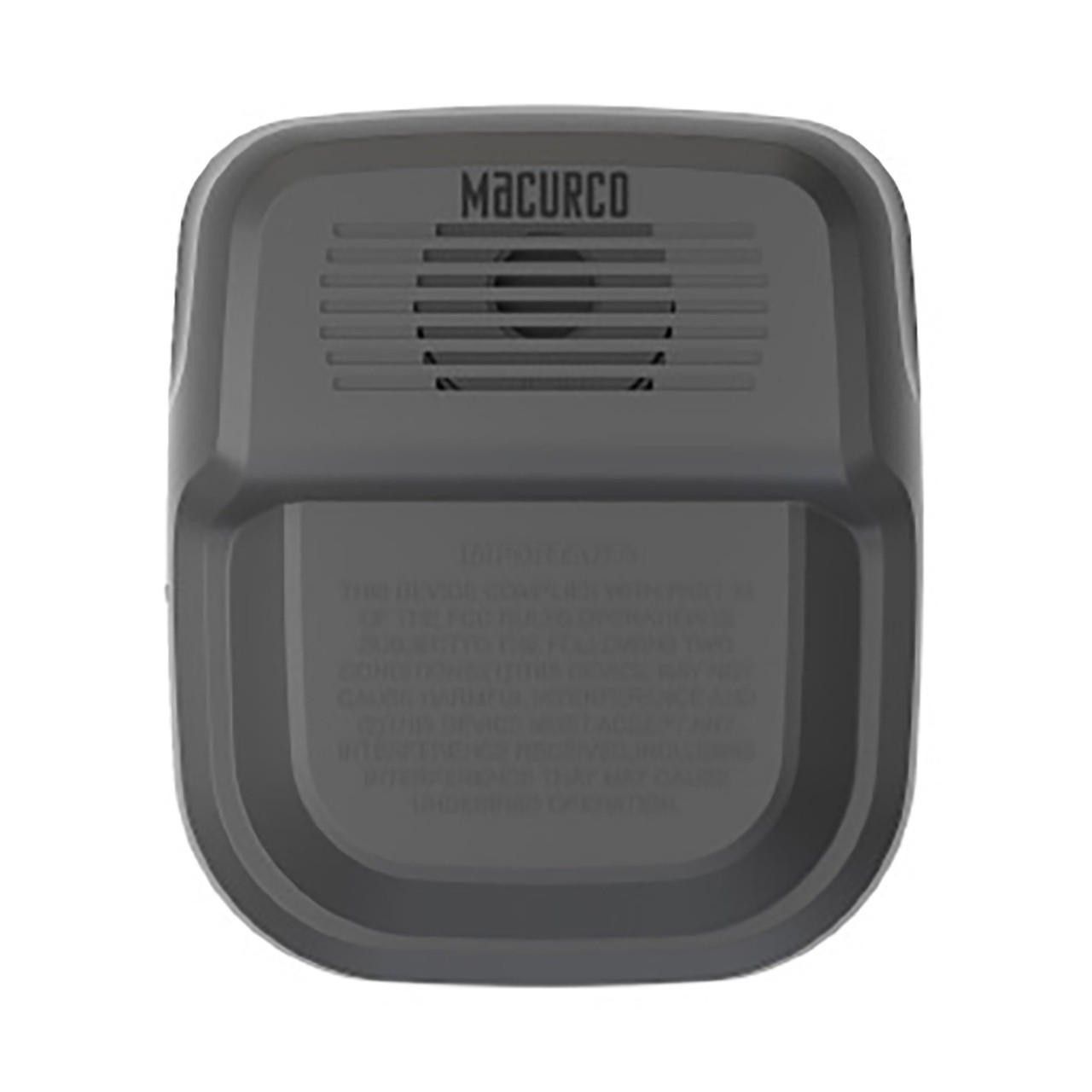

Macurco MHG Horn Only - (Gray Cover)

The Macurco Horn and Strobe series is designed for spaces where distinctive visual or audible signal is required. These devices use low current to provide a high decibel output and can be easily seen and heard from afar. The Horn and Strobe works well with Macurco products including the DVP-120, DVP-120M control panels and the Macurco 6 & 12 Series detectors. This notification device can be flush or surface mounted on a standard 4 x 4 in electrical box.

Macurco MHG Horn Only - (Gray Cover) Features

• Voltage Range: MHG 16 - 33 VDC, HORN - Ensures compatibility with a variety of systems.
• Nominal Voltage: 24 VDC - Provides optimal performance with standard configuration.
• Operating Voltage: 16 - 33 VDC - Adaptable for different power environments.
• Operating Environment: 32 to 120 deg F, 10 to 93% RH - Versatile, suitable for diverse conditions.
• Color: Blue - Distinctive and recognizable for easy communication.
• Dimensions: 5-1/2 x 4-3/4 x 2 in - Compact design for easy installation.
• Strobe Compatibility: DVP-120 & DVP-120M Control Panels, 6 & 12 Series Gas Detectors - Seamlessly integrates with existing Macurco equipment.
• Approvals: UL 1638A, ULC C22.2 No.205 - Certified for safety and reliability.
• Horn Patterns: Temporal 4 High, Temporal 4 Low, Continuous High, Continuous Low (Field Selectable) - Provides flexibility depending on lighting and sound requirements.
• Optical Design: Flexible optic design to meet or exceed the light output on vertical/horizontal dispersion - Ensures maximum visibility.
• Adjustable Strobe Candela: Adjustable at 15, 30, 75 or 110 cd *Based on test result with clear lens cover - Customizable light output for various settings.
• Audible Tone Settings: Adjustable two tone settings: Continuous (high/low), Temporal 4 (high/low) - Tailor notifications to user preference.
• Pulse Duration: 20 ms pulse duration - Quickly achieves desired alarm state.
• Low Current Draw: Efficient operation reduces power consumption.
• LED Type: High power cool white LED is used - Long-lasting and energy-efficient lighting.
• Strobe Flash Rate: 1 flash per second - Maintains visibility in emergency situations.
• Compatibility: Works with Macurco DVP-120 & DVP-120M control panels - Ensures integrated alarm solutions.
• Series Compatibility: Works with Macurco 6 & 12 Series detectors - Enhances overall system performance.
