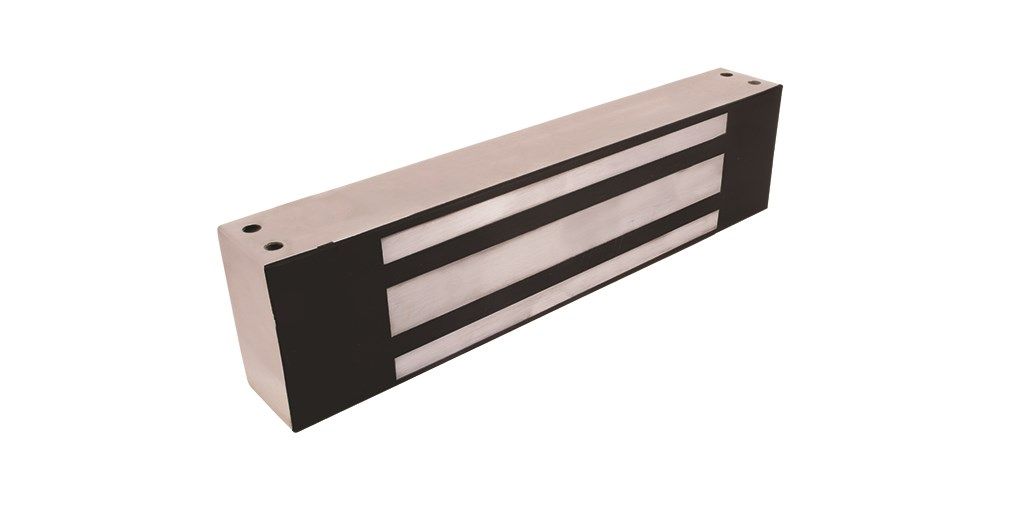

Securitron M82GB M82 Magnalock, 12/24VDC, Gate Conduit, Bondstat

The Securitron M82 electromagnetic lock offers unsurpassed magnetic holding strength, durability and ease of maintenance for interior, perimeter and exterior access control applications in high-risk environments. With unsurpassed durability, the Securitron M82 will last long after most buildings wear out. Flexible mounting options are available for higher security locations and other environments where extreme forces may be encountered.

Securitron M82GB M82 Magnalock Features

• Holding Force: 1,800 pounds of pull-apart holding force ensures maximum security against forced entry.
• Power Consumption: Efficient power consumption of 350mA @ 12VDC and 200mA @ 24VDC means reduced energy costs.
• Automatic Dual Voltage: Automatically operates at 12 VDC or 24 VDC without requiring field adjustments, simplifying installation.
• Bondstat Standard: Enhances the lock’s reliability and performance in various applications.
• Instant Release Circuit: Features no residual magnetism for safe and rapid disengagement.
• Easy Installation: Can be surface mounted using only a drill and allen wrench, making setup quick and hassle-free.
• Weather and Tamper Proof: Fully sealed electronics ensure reliable operation in harsh conditions.
• Secure Mounting: Uses steel machine screws into blind finishing nuts for a robust installation.
• Architectural Finish: The brushed stainless steel finish adds an aesthetic appeal to any installation setting.
• Comprehensive Hardware Accessories: Includes brackets, housings, and dress covers to fit every type of opening.
• Extended Length Conductor: Comes with ten feet of jacketed stranded conductor for flexible installation options.
• Corrosion Resistance: Lock and strikes are plated to provide excellent resistance against corrosion.
• Fail Safe: Designed to provide secure locking under various conditions.
• UL Listed: Approved for safety and reliability in compliance with industry standards.

Securitron M82GB Detailed Specifications
