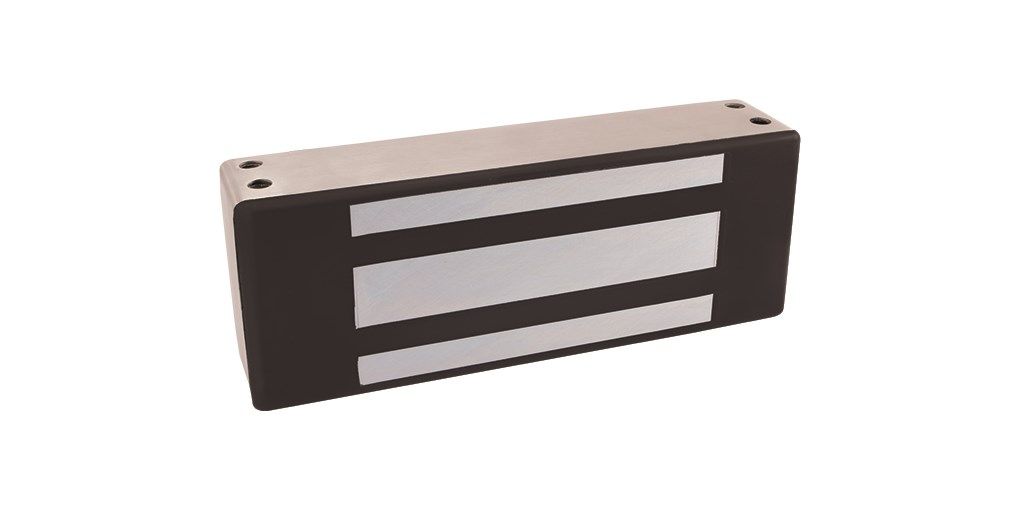

Securitron M62FG Magnalock 12/24 VDC, Face Drilled, Gate Conduit

Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss. 1200 lbs holding force Magnalock with automatic dual voltage.

Features

• Patented instant release circuit: ensures no residual magnetism, providing a quick and safe lock release.
• Fully sealed electronics: designed to be tamper proof and weatherproof for enhanced durability in various environments.
• Easy surface mounting: allows for quick installation with minimal tools, saving both time and labor costs.
• Secure mounting: uses steel machine screws into blind finishing nuts for a reliable hold.
• Architectural brushed stainless steel finish: provides a stylish look and resistance to corrosion (US32D/630).
• Plated ferrous metal surfaces: ensure compliance with MIL specifications for added protection.
• Customizable hardware accessories: available to configure and fit any opening as needed.
• Optional dress covers: offer aesthetic enhancements for a polished appearance.
• Generous conductor length: ten feet [3.05m] of jacketed, stranded conductor included for flexible installation.
• Automatic dual voltage: eliminates the need for field adjustments, simplifying the setup process.
• Lock options: include BondSTAT magnetic bond sensor and integrated door position switch for enhanced security features.
• Universal threaded conduit fitting: offers compatibility with 1/2" female to 3/4" male connections.
• Available strike plates: both split and offset options ensure adaptability to various installations.
• UL Listed: providing assurance of superior safety standards.
