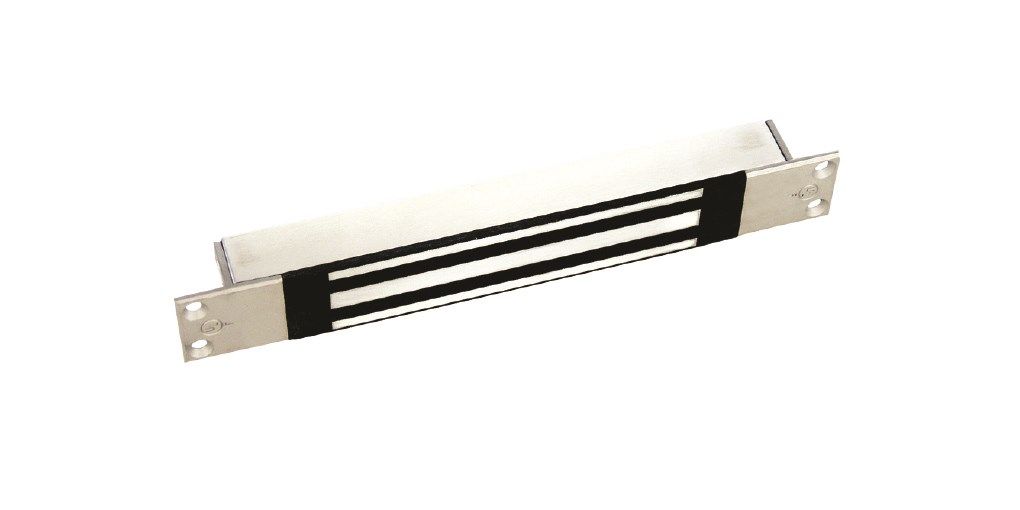

Securitron M34R M34 Magnalock 12/24 VDC, Recessed

The M34R from Securitron is a 500 lbs. holding force Magnalock with automatic dual voltage for mounting in sliding doors. This results in an aesthetically appealing finished appearance. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.

Features

• Holding Force: 600 pounds of pull-apart holding force ensures security and reliability.
• Warranty: Lifetime replacement warranty provides peace of mind and long-term value.
• Power Consumption: Efficient power usage of 320mA @ 12VDC & 170mA @ 24VDC–4 Watts keeps operational costs low.
• Automatic Dual Voltage: No field adjustment required for 12 VDC or 24 VDC means easier installation and versatility.
• Instant Release Circuit: No residual magnetism allows for quick access and prevents malfunction.
• Recessed Design: Aesthetically appealing finish integrates seamlessly into modern interiors.
• Sealed Electronics: Fully sealed, tamper-proof, and weather-proof for prolonged durability in various environments.
• Architectural Finish: Elegant brushed stainless steel enhances the overall look of the installation.
• Jacketed Conductor: Comes with ten feet of jacketed stranded conductor for flexible installation options.
• Corrosion Resistance: Lock and strikes plated to resist corrosion for a longer lifespan.
• Bondstat Model Availability: Also available in Bondstat model for alternative configurations.
• Fail Safe: Designed to be fail safe for additional security reassurance.
• UL Listed: Demonstrates compliance with safety standards for quality assurance.

Securitron M34R Magnalock Detailed Specifications
