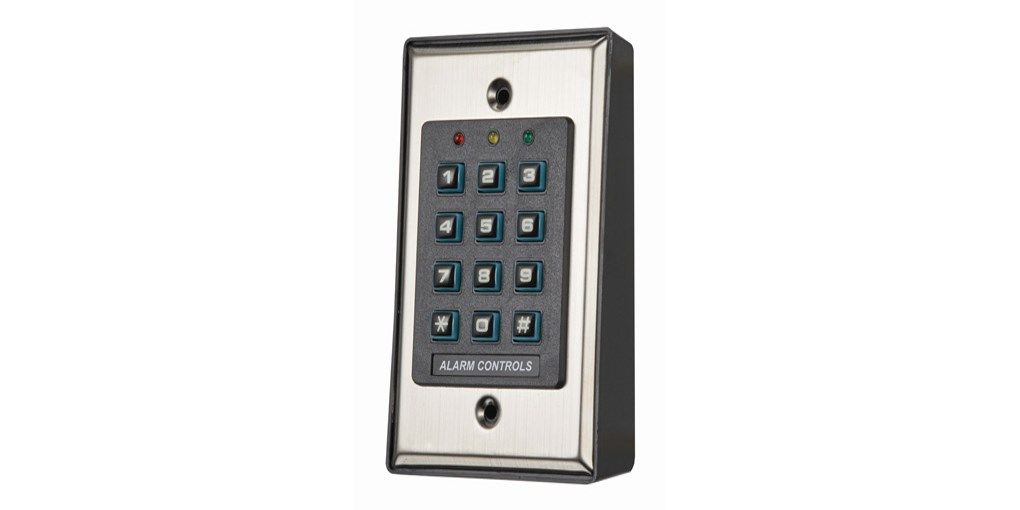

Alarm Controls KP-100A Self-Contained Digital Keypad

The KP-100A is a self-contained digital access control keypad, designed for versatility and ease of use. It features a flush or surface mountable design, making installation straightforward. With the ability to support up to 1,000 user codes, and additional temporary codes for visitors, it's perfectly suited for enhancing security in access control and alarm systems. The KP-100A also offers programmable functionalities, a built-in tamper switch, and various operational modes for user convenience.

Alarm Controls KP-100A Keypad Features

• Mounting Options: Single gang or flush mount stainless steel plate ensures flexibility in installation.
• Illuminated Keypad: 12-key illuminated 3x4 keypad for visibility in low-light conditions.
• User Code Capacity: Supports 1 - 1,000 user codes to accommodate large groups.
• Visitor Codes: Ability to store 1 - 50 visitor codes for temporary access.
• Easy Programming: Simplified programming directly from the keypad enhances user experience.
• Tamper Switch: Built-in tamper switch with N.C. dry contact provides added security.
• Operational Modes: Features passage mode and lockout mode for various security needs.
• Audible Feedback: Configurable audible keystroke echo tone for user confirmation.
• Status LEDs: Red, green, and yellow LEDs for clear status and programming feedback.
• Fail Safe/Secure: Capable of fail safe or fail secure operation according to application needs.
• Installation: Easy installation with simple hand tools simplifies setup.
• Control Relay: Features 5A SPDT timed, control relay (1) output for versatile functionality.
• Request to Exit (REX): Includes REX input for enhanced security control.
• Indoor Usage: Designed specifically for indoor applications only.

Alarm Controls KP-100A Detailed Specifications
