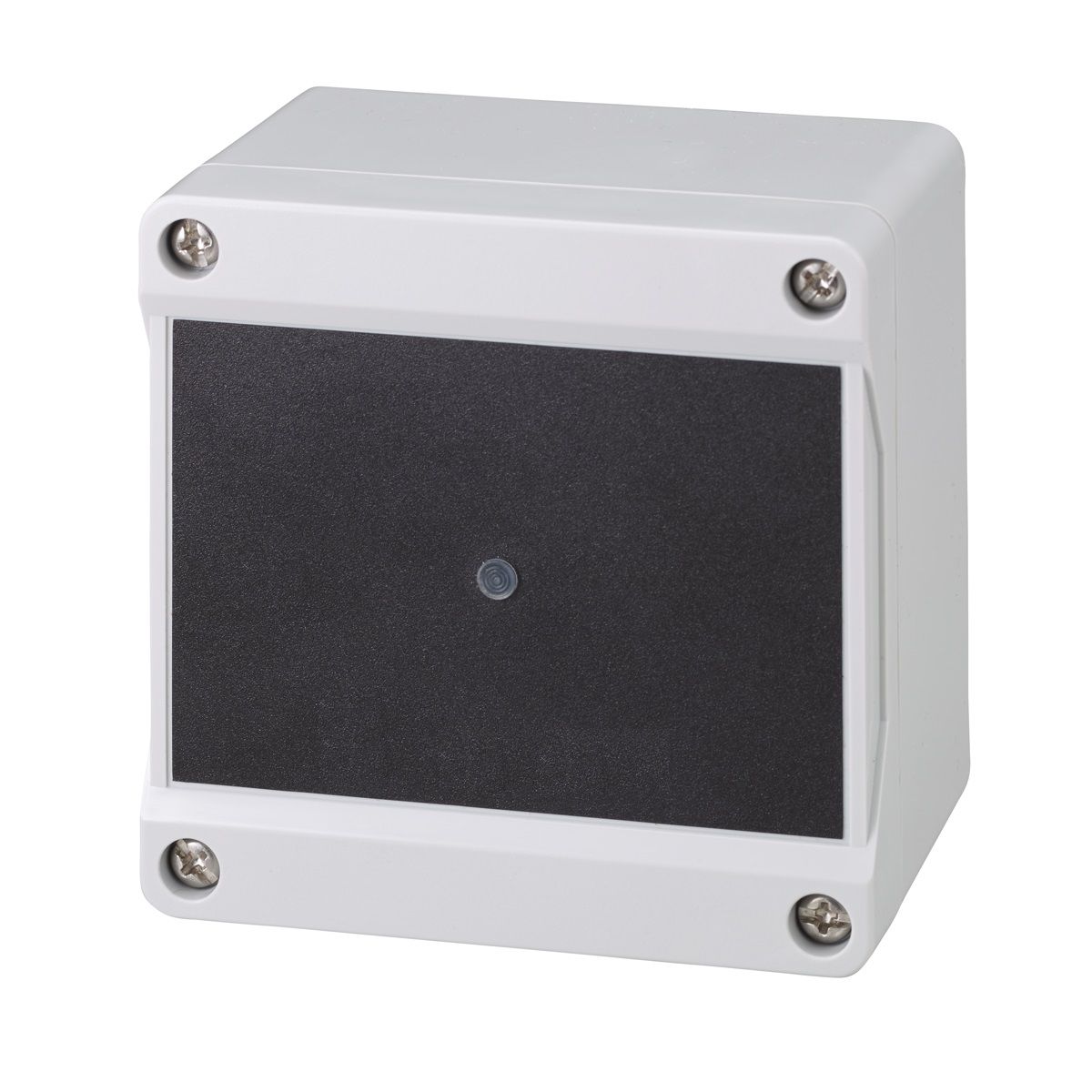

ZKAccess FLR-UHF-30 100ft Range RFID Reader

With its 100 feet (30M) read-range, FLR-UHF-30 provides users convenient long range authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their credential held in close range to the reader. FLR-UHF-30 has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).

Features

• Frequency: Operates at 433MHz for optimal performance in various environments.
• Read Range: Up to 100 feet (30M), allowing for convenient credential access without proximity restrictions.
• Material: Durable die-casting aluminum shell combined with an antenna panel made from engineering plastics ensures longevity.
• Color: Features an off-white plastic enclosure with a professional black label for easy identification.
• Indoor & Outdoor Installation: Sealed electronics in weather-resistant epoxy potting make it suitable for diverse installation settings.
• Communication Interface: Wiegand compatibility (26 bit industry standard and custom Wiegand formats) facilitates seamless integration.
• Power Supply: Requires a nominal 12V DC for consistent operation.
• Current: Consumes 80 mA typical at 12V DC, making it energy-efficient.
• IP-rating: IP65 rating ensures reliable operation even in harsh environmental conditions.
• Operating Temperature: Functions effectively at temperatures ranging from –40° F to 149° F (–40° C to +65° C).
• Operating Humidity: Capable of functioning in 15% to 90% relative humidity (non-condensing).
• Dimensions: Compact size of 3.3? W × 3.3? H × 1.9? D (84 mm × 84 mm × 48.3 mm) for easy placement.
• Certifications: Meets FCC, CE, ICC, and UL Standard 294 standards for safety and reliability.

ZKAccess FLR-UHF-30 Detailed Specifications
