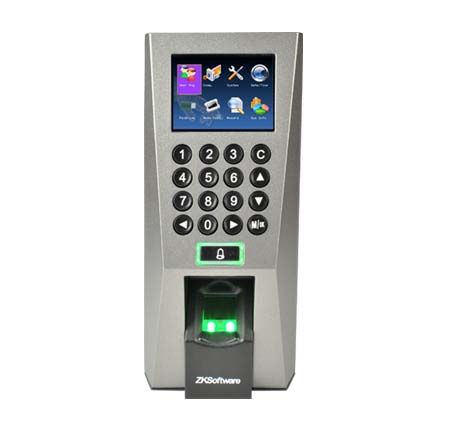

The F18-Mifare from ZKAccess is a reliable, durable and highly accurate ZK fingerprint sensor with ver. 10 algorithm provides less than 1.5 second user recognition. Works without computer. Complete setup and programming can be done via keypads and embedded firmware. Graphical user interface on a 3.5 inch TFT display for rich user experience. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints. Relay outputs for electric lock and alarm. Inputs for door status sensor and exit switch. Supports multiple timezones and personnel groups for programming valid entry zones. The alarm will be triggered when the tamper switch is activated. Weigand output for connecting to access control panel and Ethernet port for fast and reliable communication with the computer.
ZKAccess F18-Mifare Fingerprint Reader Features
Interface Options: Three different kinds of interface style, including common, matrix and magic styles, providing flexibility for different user preferences.
High Accuracy: Reliable, durable and highly accurate ZK infrared detection fingerprint sensor with version 10.0 fingerprint algorithm, ensuring quick and precise recognition.
Fast Recognition: Less than 1 second user recognition, significantly speeding up the access process.
Storage Capacity: Stores 1500 fingerprint templates and 30,000 transactions, making it suitable for large user bases.
Versatile Reading: Reads both fingerprint and/or RFID cards, accommodating various access methods.
Connectivity: Built-in Serial and Ethernet ports for easy integration with existing systems.
Access Control Compatibility: Built-in Wiegand input/output port allows seamless connection to third-party access control panels.
Manual Data Transfer: Built-in USB port for easy manual data transfer, ensuring data accessibility.
Indication Features: Audio-Visual indication for acceptance and rejection of valid/invalid fingers, enhancing user feedback.
Security Features: Tamper switch and alarm contacts for added security against unauthorized access.
Custom Options: Special Order with HID or Mifare card modules available, tailoring the product to specific needs.
F18-Mifare-Specsheet
