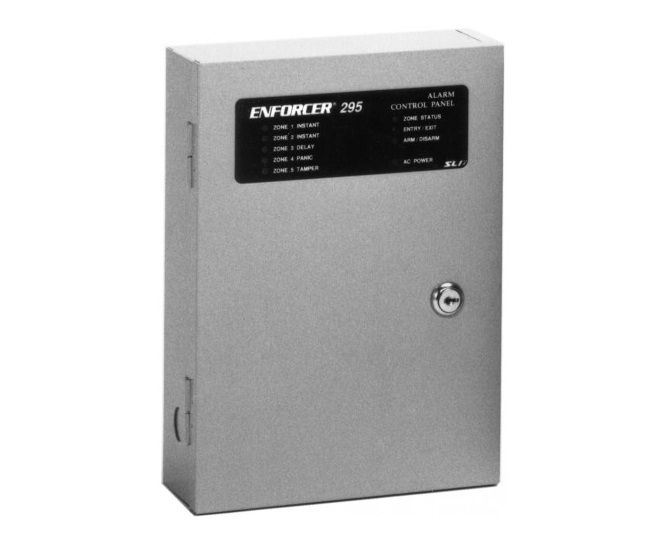

Seco-Larm ENFORCER-295 Alarm Control Panel

The Seco-Larm ENFORCER-295 Alarm Control Panel is designed for superior security with its five zone inputs and multi-remote features. This control panel offers high protection against transient surges, adjustable timers for both entry and exit delays, and multiple alerts with visible status updates. The robust construction and included tamper switches ensure the integrity of your security system while providing ease of use and installation.

Seco-Larm ENFORCER-295 Alarm Control Panel Features

5 Separate zone inputs

• N.O. or N.C. (selectable) instant zone with exit delay for versatile configuration.
• N.C. instant zone with exit delay prevents unauthorized entry.
• N.C. delay zone with entry and exit delays increases response time for legitimate users.
• N.O. 24-hour panic zone with no entry and exit delays ensures immediate alert in emergencies.
• N.C. 24-hour tamper zone instant trigger no delay provides prompt tamper detection.

5 Zone shunting switches

• Shunt out any non-working zone to prevent false alarms, maintaining system reliability.
• Super-high-transient protection on all inputs safeguards against electrical interference.
• 3 Adjustable timers enhance control over zone functionalities.

9 Status LEDs

• Individual zone status green LEDs for quick visual checks.
• Total zone status green LED provides combined status indication for all zones.
• Arm/disarm/shunt status red LED shows current system status for user clarity.
• Entry/Exit status yellow LED signals when in delay mode for user awareness.
• Primary power status red LED indicates AC power availability.
• All LEDs are clearly visible even when the cabinet is closed.

2 Alert signals for entry and exit delay

• Pulsed output during exit delay facilitates a smooth exit process.
• Constant output during entry delay ensures awareness of potential intruders.
• Patented Automatic Extended Exit Delay (A.E.E.D.) dynamically adjusts exit time as needed.
• Fail-safe circuitry requires all zones to be secure before arming.
• Phase-II continual protection maintains system integrity even if inputs remain triggered.
• Multi-remote arm/disarm functionality accommodates multiple users.
• Arm/disarm report output supports better monitoring of system activity.
• Tamper output signals for immediate response if tamper is detected.
• Positive voltage (3 Amp) relay output drives sirens and alerts with ease.
• Compatible with both 16V AC/DC and backup battery systems for flexibility.
• Regulated power supply and recharger enhance reliability during power outages.
• Robust steel cabinet construction protects internal components and ensures durability.
• 2 included tamper switches enhance security monitoring of the cabinet.
