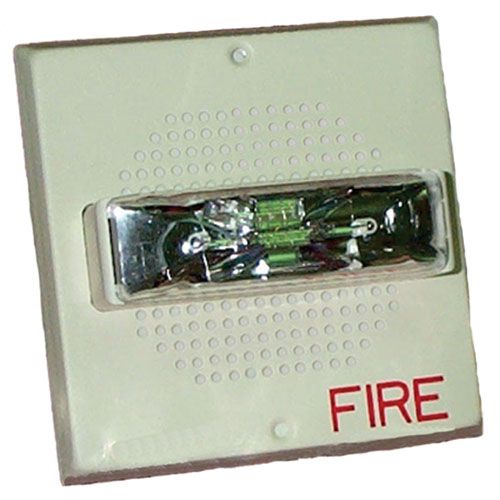

Bosch E70-24MCWH-FW Low-Profile Speaker Strobe, White
SKU
E70-24MCWH-FW
Model No
E70-24MCWH-FW
$107.99
Product Highlights
- 24 VDC, filtered or unfiltered
- Field-selectable candela settings (135 cd or 185 cd)
- ADA, NFPA, ANSI compliant
- Compatible with SM and DSM Synchronization Modules
- Low average current draw and zero inrush current

Speak to an expert
The Bosch E70-24MCWH-FW Low-Profile Speaker Strobe offers exceptional audio output combined with visible signaling features to enhance safety in critical areas. With field-selectable light intensity settings and a design focused on meeting ADA and NFPA standards, this appliance is ideal for alerting hearing-impaired individuals in environments such as schools, hospitals, and public spaces. Its low power consumption and quick installation process further underscore its functionality and efficiency.
Bosch E70-24MCWH-FW Speaker Strobe Features
- Power Supply: 24 VDC, filtered or unfiltered - ensures compatibility with various alarm systems for flexible installations.
- Candela Settings: Field-selectable candela settings (135 cd or 185 cd) - allows customization of light output according to environmental needs.
- Compliance: ADA, NFPA, ANSI compliant - guarantees adherence to crucial safety regulations, making it suitable for sensitive environments.
- Synchronization: Compatible with SM and DSM Synchronization Modules - enables synchronized flashing to enhance visibility for the hearing impaired.
- Efficiency: Low average current draw and zero inrush current - minimizes energy consumption while maintaining effective operation.
Bosch E70-24MCWH-FW Detailed Specifications
| Feature | Details |
| Model | Bosch E70-24MCWH-FW |
| Type | Speaker Strobe |
| Mounting | Low-Profile Design |
| Light Intensity Settings | 135 cd or 185 cd selectable |
| Speaker Frequency Range | 400 Hz to 4 kHz |
| Current Draw | Low average current, zero inrush |
| Compliance Standards | ADA, NFPA, ANSI |
| Synchronization Modules | Compatible with SM and DSM modules |
| Installation Features | Built-in level adjustment, two-screw grill cover |
