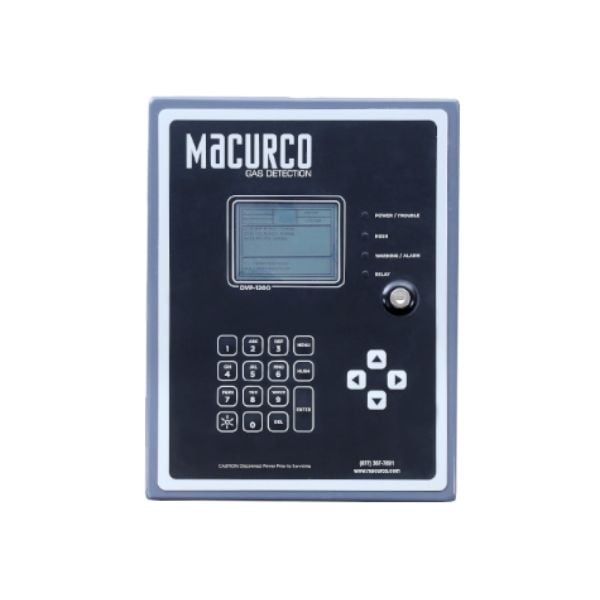

Macurco DVP-1200-LADBS Control Panel, works with Macurco 6-Series

The DVP-1200-LADBS controller, designed for use with Macurco 6-Series gas detectors, offers advanced automatic control to ensure a safe and secure environment in parking garages and similar applications. With the capability to connect to up to 192 addressable detectors, this expandable control panel features a robust relay system, multiple outputs for comprehensive control, and a user-friendly interface. ETL Listed and LADBS Approved, the DVP-1200-LADBS is perfect for enhancing gas detection safety.

Macurco DVP-1200-LADBS Control Panel Features

• Three RS-485 channels: Connects up to 192 detectors (64 per channel) for extensive coverage and flexibility.
• Up to 12 relays: Allows for comprehensive control over different safety functions within the application.
• Standard with four onboard relays: Provides an immediate setup for essential control functions upon installation.
• Expandable relay options: Offers up to four optional onboard expansion relays (+2 or +4) to adapt to growing needs.
• Remote relay box connectivity: Supports two remote relay boxes (two relays in each) for enhanced functionality.
• (3) 4-20mA outputs: Ensures compatibility with VFD control for efficient system integration.
• (4) 24VDC outputs: Designed for alarms, trouble signals, and remote notifications, enhancing communication and response.
• BACnet IP: Provides an ethernet connection for seamless integration with existing building management systems.
• Lockable NEMA4X type enclosure: Ensures durability and protection in harsh environments.
• Eight definable zones: Allows for tailored safety measures based on specific area requirements.
• Event logging: Enables tracking and auditing of events for regulatory compliance and safety reviews.

Macurco DVP-1200-LADBS Detailed Specifications
