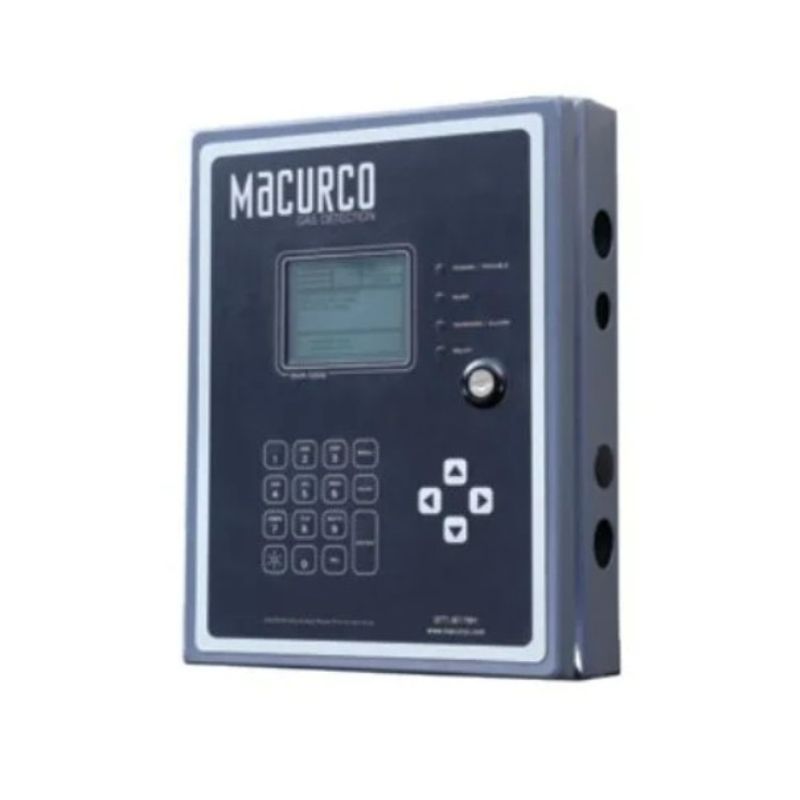

Macurco DVP-1200-8 Control Panel, Works with 6-Series, 192 Modbus Inputs

The Macurco DVP-1200-8 Control Panel is a sophisticated solution designed to enhance safety in parking garages and similar environments by offering effective gas detection and control. With its capacity to manage up to 192 addressable detectors, this expandable system ensures comprehensive coverage and robust performance. Key features include multiple relay options, versatile output configurations, and advanced connectivity options to adapt to various applications, providing reliable monitoring and control where it's needed most.

Macurco DVP-1200-8 Control Panel Features

• Detector Connectivity: Three RS-485 channels can connect up to 192 detectors (64 per channel), ensuring comprehensive monitoring across extensive areas.
• Relay Capacity: Standard with 4 onboard relays, and an option for up to 4 additional relays, providing flexibility for various operational needs.
• Output Options: (3) 4-20mA outputs for Variable Frequency Drive (VFD) control, enhancing operational efficiency.
• Alarm Integration: (4) 24VDC outputs designated for alarm, trouble, and remote notifications, ensuring prompt alerts in case of emergencies.
• Network Connection: BACnet IP compatibility allows for seamless integration into existing network frameworks.
• Durable Enclosure: Lockable NEMA4X type enclosure protects the unit from dust and water, ensuring longevity and reliability.
• Zone Configuration: Eight configurable zones enhance the customized monitoring capabilities of the system.
• Event Logging: Built-in event logging enables users to track and analyze incidents, improving response times.
• Remote Driver Capability: Using up to 4 remote drivers can add a maximum of 32 relays, 32 analog outputs, and 48 analog inputs, enhancing system expandability.

Detailed Specifications for Macurco DVP-1200-8 Control Panel
