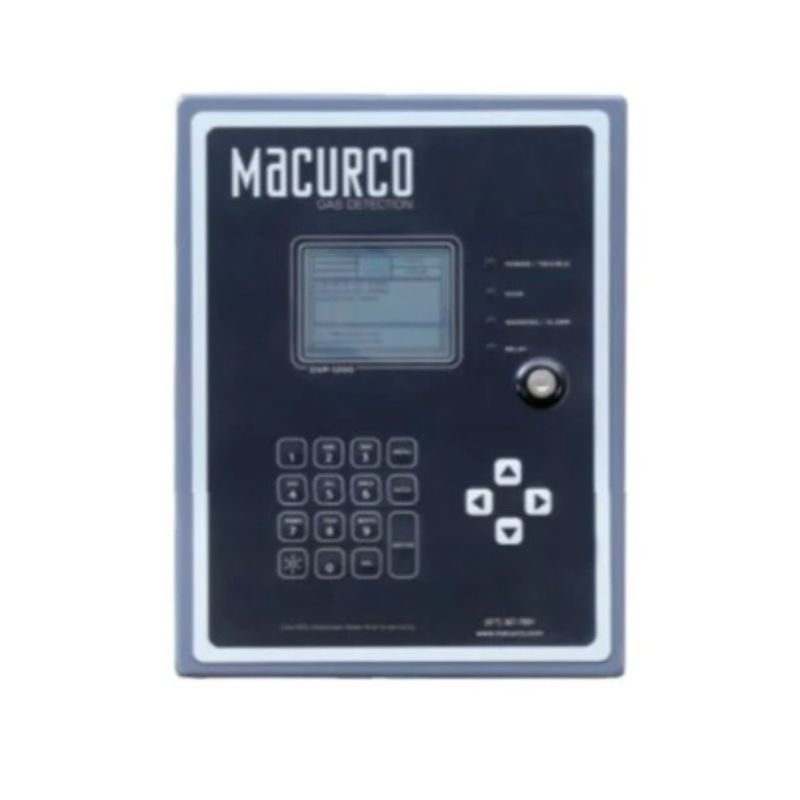

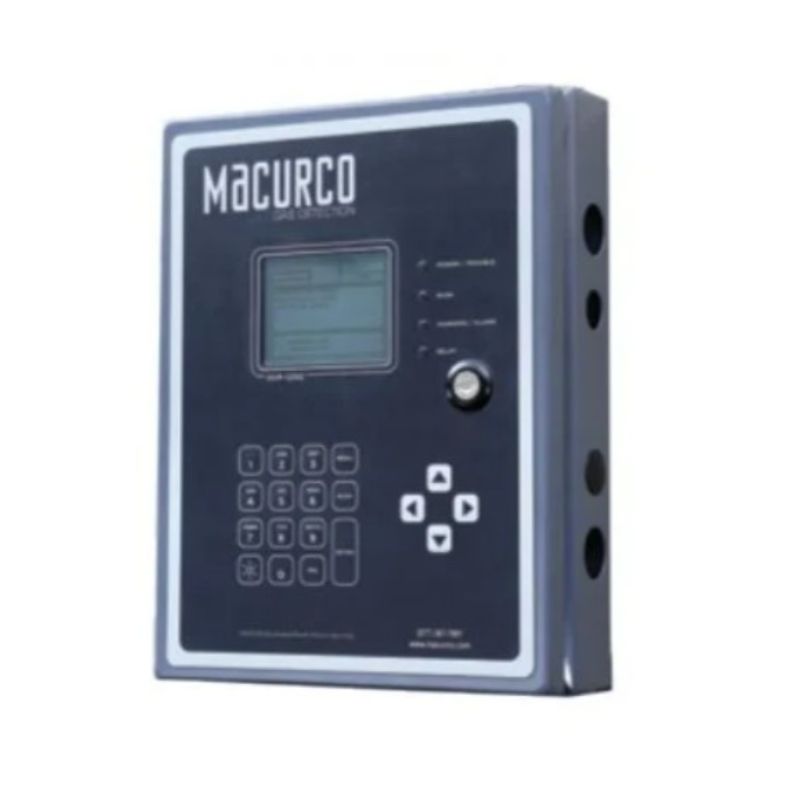

Macurco DVP-1200-6 LADBS Control Panel, Works with 6-Series, 192 Modbus Inputs

The DVP-1200 controller in conjunction with Macurco gas detectors provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to four remote drivers with each remote driver containing a combination of inputs/outputs. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.

Features

• RS-485 Connectivity: Three RS-485 channels can connect up to 192 detectors (64 per channel), ensuring extensive coverage and flexibility in detector placement.
• Onboard Relays: Standard with 4 relays and expandable options (+2 or +4), providing versatility for controlling alarms and notifications.
• Analog Outputs: (3) 4-20mA outputs for VFD control, enabling precise management of ventilation fan drives.
• 24VDC Outputs: (4) outputs for alarm, trouble, remote notification, ensuring reliable communication of critical status information.
• BACnet IP Compatibility: Ethernet connection allows for integration with other building systems for streamlined operation.
• Durable Enclosure: Lockable NEMA4X type enclosure protects from environmental factors, improving durability.
• Configurable Zones: Eight configurable zones provide customized detection coverage for various environments.
• Event Logging: Monitor and record events for compliance and analysis, enhancing operational efficiency.
• Remote Driver Capability: Using up to 4 remote drivers allows for maximizing additional functionalities: Max 32 relays, 32 analog outputs, and 48 analog inputs.

Macurco DVP-1200-6 Control Panel Detailed Specifications
