Macurco DVP-1200-4 Control Panel Works with Macurco 6-Series, 192 Modbus Inputs

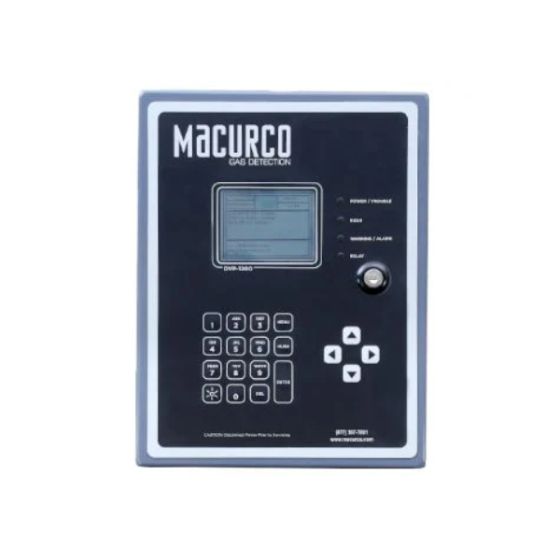

Macurco DVP-1200-4 Control Panel

The DVP-1200-4 controller in conjunction with Macurco gas detectors provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to two remote relay boxes with each remote relay box containing two relays. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.

Features

• Three RS-485 channels: can connect up to 192 detectors (64 per channel) ensuring comprehensive coverage and monitoring.

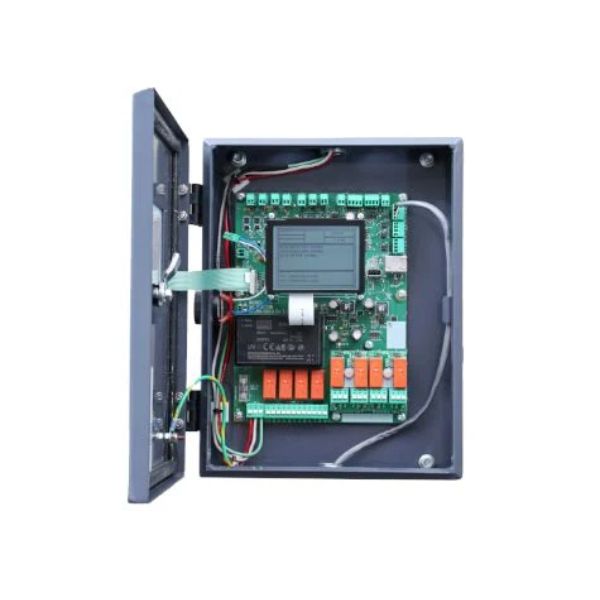

• Up to 12 relays: Standard with four onboard relays and options for expansion (+2 or +4), plus remote relay box connectivity for enhanced control capabilities.
• (3) 4-20mA outputs: designed for Variable Frequency Drive (VFD) control for efficient operation.
• (4) 24VDC outputs: used for alarm, trouble, and remote notifications to keep you informed in real-time.
• BACnet IP: facilitates easy integration with other building management systems via ethernet connection.

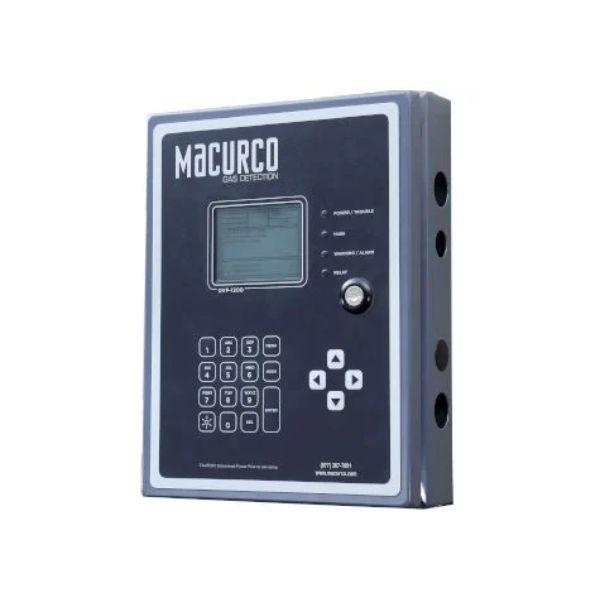

• Lockable NEMA4X type enclosure: provides a durable and secure housing to protect against environmental factors.
• Total of eight zones: can be defined to enhance system flexibility and management.
• Event logging: allows for tracking and documentation of system activity for compliance and troubleshooting.
