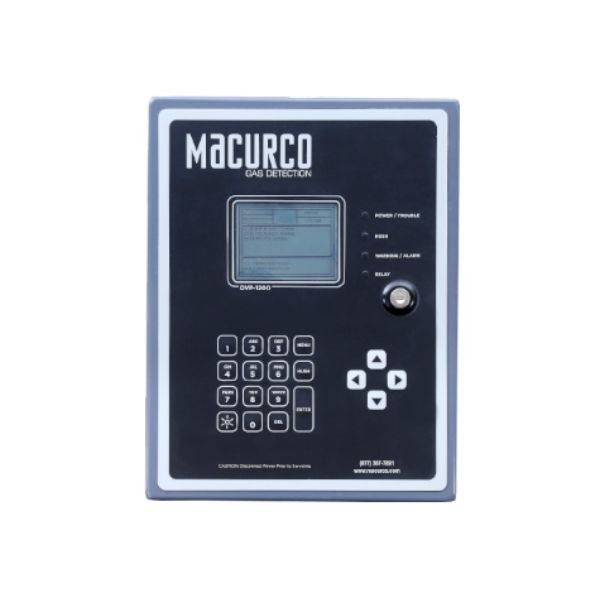

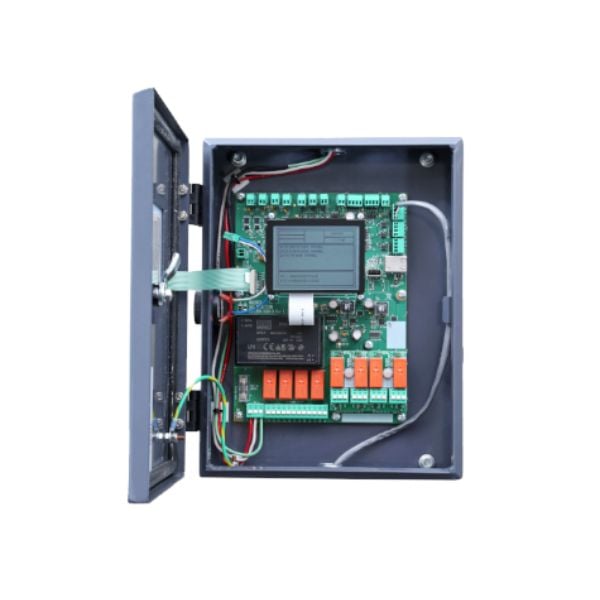

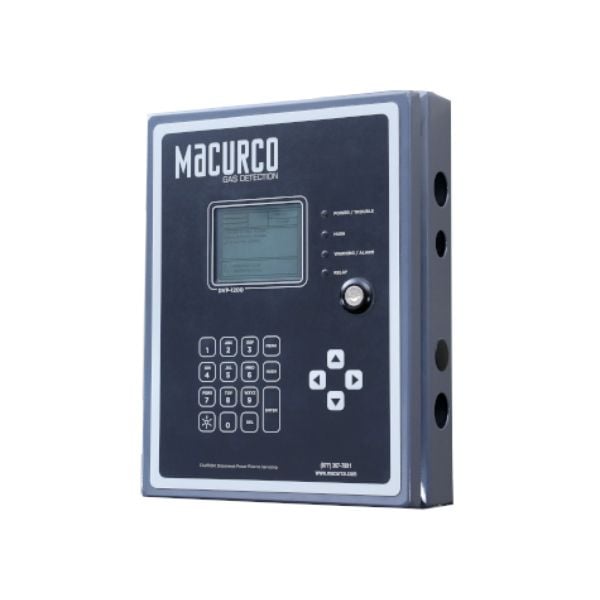

Macurco DVP-1200-4 LADBS Control Panel, works with Macurco 6-Series

The DVP-1200-4 LADBS control panel by Macurco is a versatile and expandable solution designed for gas detection in parking garages and other environments. It seamlessly integrates with up to 192 addressable detectors, providing robust monitoring and control capabilities. With four standard relays, expandable options, and advanced communication features like BACnet IP, this control panel ensures safety and efficiency in gas detection applications.

Macurco DVP-1200-4 LADBS Control Panel Features

• Detectors Connectivity: Three RS-485 channels can connect up to 192 detectors (64 per channel) for extensive monitoring capabilities.
• Relay Configuration: Up to 12 relays available, ensuring flexibility in alarm and control responses.
• Standard Relay Count: Comes standard with four onboard relays to meet basic requirements straight out of the box.
• Expandable Relay Options: Up to four optional onboard expansion relays (+2 or +4) to enhance system versatility.
• Remote Relay Connection: Can be connected to two remote relay boxes, each housing two relays for expanded applications.
• Analog Outputs: (3) 4-20mA outputs for variable frequency drive control, allowing for customization in operations.
• 24VDC Outputs: (4) 24VDC outputs designated for alarm, trouble, and remote notification signaling.
• Ethernet Capability: Features BACnet IP communication for modern network integration.
• Enclosure Type: Lockable NEMA4X type enclosure protects the panel from environmental elements.
• Zone Definitions: Supports the definition of a total of eight zones for organized monitoring.
• Event Logging: Features event logging to keep track of system performance and historical data.
