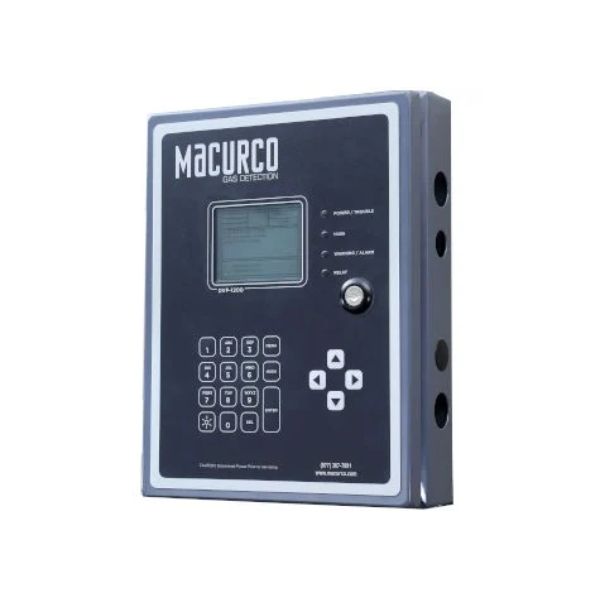

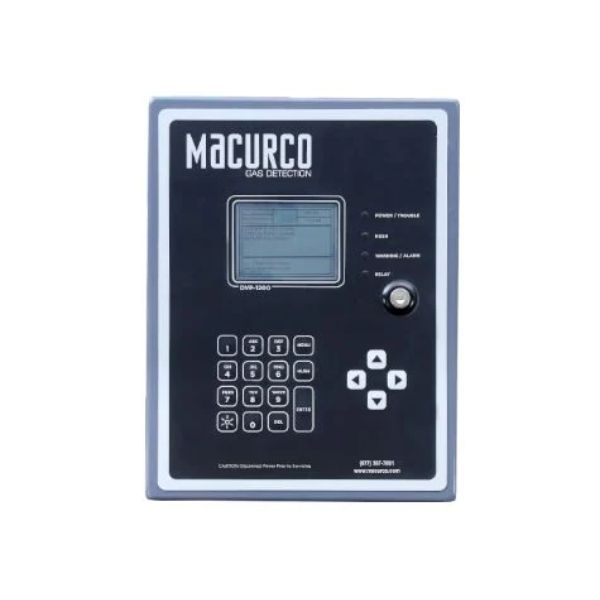

Macurco DVP-1200-2 Control Panel Works with Macurco 6-Series, 192 Modbus Inputs

Macurco DVP-1200-2 Control Panel Features

The DVP-1200-2 controller in conjunction with Macurco gas detectors provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to two remote relay boxes with each remote relay box containing two relays. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.

Features

• RS-485 Connectivity: Three RS-485 channels can connect up to 192 detectors (64 per channel) maximizing detection coverage.
• Relay Expansion: Up to 12 relays - Standard with four onboard relays and options for +2 or +4 additional relays to cater to varying requirements.
• 4-20mA Outputs: Three outputs available for VFD control enhancing system performance.
• 24VDC Outputs: Four outputs for alarm, trouble, and remote notifications ensuring effective communication in emergencies.
• BACnet IP Support: Allows for an ethernet connection ensuring seamless integration with existing building management systems.
• Durable Enclosure: Lockable NEMA4X type enclosure provides robust protection in diverse environments.
• Defined Zones: Total of eight zones can be defined for greater flexibility in monitoring and control.
• Event Logging: Built-in event logging for tracking system performance and responding to issues promptly.
