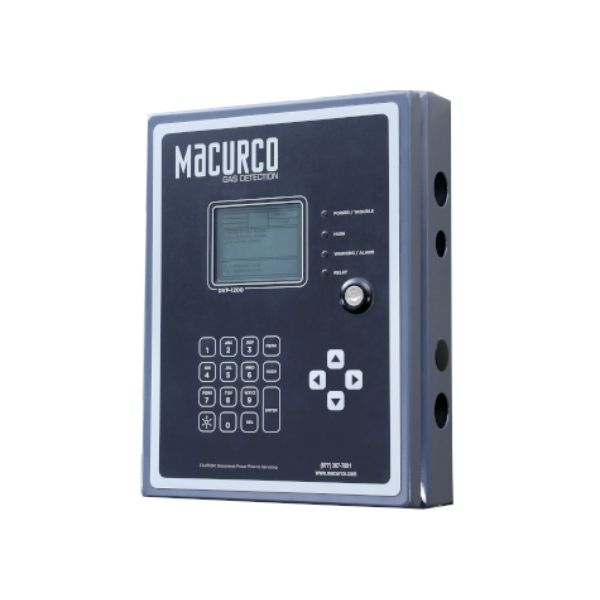

Macurco DVP-1200-2-LADBS Control Panel, works with Macurco 6-Series

The DVP-1200-2-LADBS Control Panel is designed for seamless integration with Macurco 6-Series gas detectors, allowing for automatic control that enhances safety in environments like parking garages. With an impressive capacity to support up to 192 addressable detectors, this control panel boasts features such as expandable relays, multiple analog outputs, and robust connectivity options, ensuring it meets the demands of any gas detection application. The system is also ETL Listed and LADBS Approved for added reliability.

Macurco DVP-1200-2-LADBS Control Panel Features

• Three RS-485 channels: Connects up to 192 detectors (64 per channel) for extensive coverage.
• Up to 12 relays: Flexible configuration possibilities to manage multi-zone alarms.
• Standard with four onboard relays: Immediate functionality right out of the box.
• Expandable relays: Options for additional (+2, +4) relays to adapt as needs grow.
• Remote relay box connectivity: Connects up to two remote relay boxes for additional control.
• Three 4-20mA outputs: Enhance Variable Frequency Drive (VFD) control for efficient operation.
• Four 24VDC outputs: For alarm signaling, trouble notifications, and remote alerts.
• BACnet IP support: Enables easy integration with existing network infrastructure.
• Lockable NEMA4X enclosure: Provides protection against harsh environmental conditions.
• Support for eight zones: Customizable zone definitions for targeted gas detection.
• Event logging: Keeps a record of system activity for enhanced monitoring and troubleshooting.

Macurco DVP-1200-2-LADBS Control Panel Specifications
