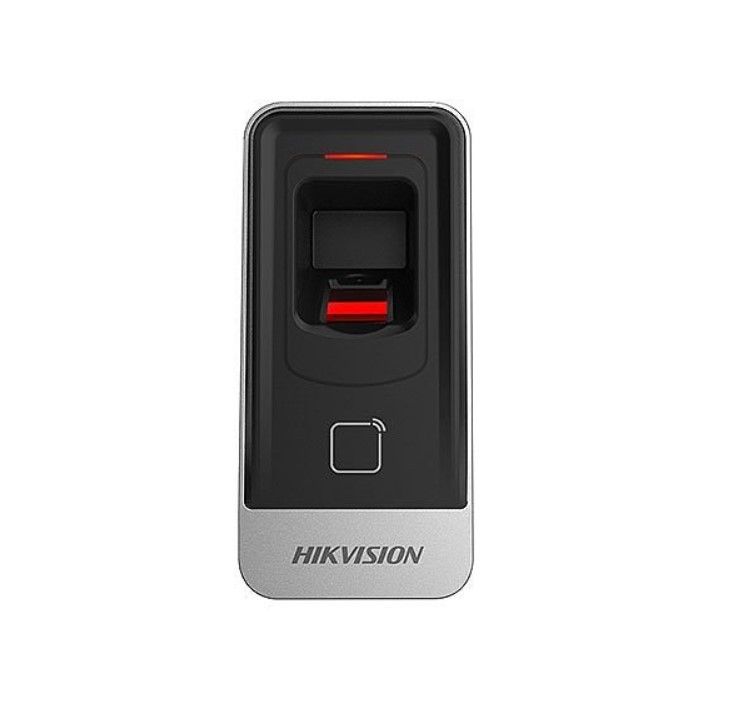

Hikvision DS-K1201AMF-O-STD Mifare Fingerprint Card Reader, Multiple Authentication Modes, Black

The DS-K1201AMF-O-STD from Hikvision is a versatile Mifare fingerprint card reader that offers multiple authentication modes, ensuring robust security and user convenience. Featuring advanced fingerprint storage encryption and a high-speed communication protocol, this device is ideal for both residential and commercial applications.

Key Features

• A group of messy code encrypted data for enhanced security of fingerprint storage, protecting user information from unauthorized access.
• Supports RS-485 communication with a 19200bps-N-8-1 transmission rate, ensuring reliable data transfer with CRC testing for protocol integrity.
• Compatible with M1 card reading, providing flexibility in access control options.
• Card induction distance ranges from 30 mm to 100 mm, allowing for seamless card detection and user convenience.
• Offers multiple authentication modes (card, fingerprint, and card + fingerprint) to cater to various security needs.
• Equipped with an optical CMOS fingerprint module, enabling users to export fingerprint characteristics directly to the card reader.
• Can store up to 5000 fingerprints, making it suitable for large user groups without compromising performance.
• Utilizes both 1:N mode (fingerprint or card + fingerprint) and 1:1 mode (card + fingerprint) for flexible access control configurations.
• Fingerprint comparison time is impressively quick: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; with a high accuracy rate (FRR ≤ 0.01%, FAR ≤ 0.001%).
• Communication circuit features optical coupling isolation and noise suppression for enhanced reliability and performance.
• Built-in buzzer provides status indication for easy monitoring of the device's operational state.
• Includes a built-in electronic clock and watchdog program for accurate data and time display, ensuring the device maintains essential functions.
• Incorporates a tamper-proof function to enhance security against unauthorized manipulation.

Detailed Specifications
