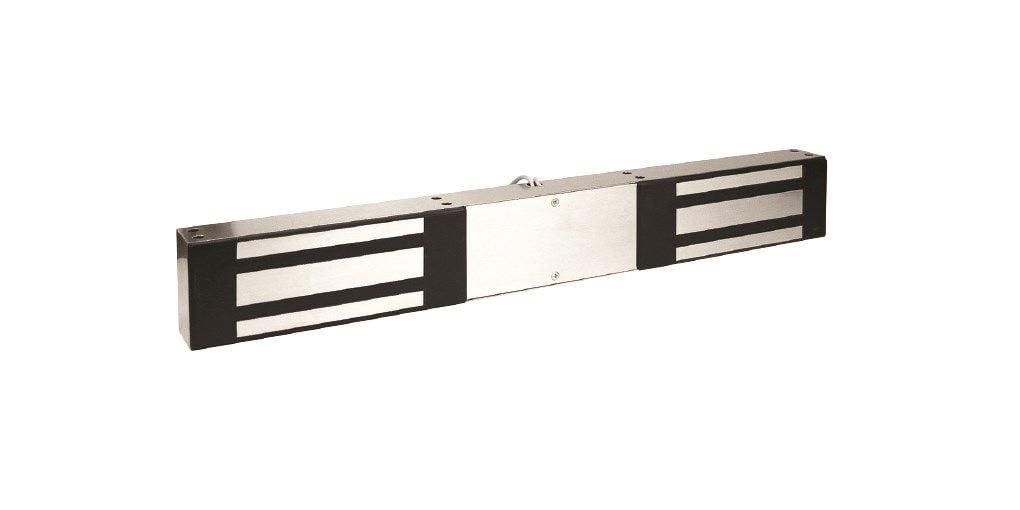

Securitron DM62D Maglock Model 62, Double, Door Position

For double doors without a center mullion, the DM62 supplies two model 62 Magnalocks in a single, brushed stainless steel housing, providing robust security and convenience.

Securitron DM62D Maglock Model 62 Features

• Pull Apart Holding Force: 1,200 pounds of pull-apart holding force per leaf ensures maximum security on your double doors.
• Power Consumption: Efficient power usage of 250Ma @ 12VDC & 150Ma @ 24VDC – 3 Watts per leaf helps reduce operational costs.
• Automatic Dual Voltage: Operates automatically at both 12 VDC and 24 VDC with no field adjustment necessary, simplifying installation and usage.
• Instant Release Circuit: Features no residual magnetism for immediate release in emergency situations, enhancing safety.
• Simple Installation: Surface mounts using only a drill and allen wrench, making installation quick and easy.
• Sealed Electronics: Fully sealed electronics ensure tamper proof and weatherproof performance, increasing durability.
• Secure Mounting: Mounted using steel machine screws into blind finishing nuts for a secure fit.
• Architectural Finish: Architectural brushed stainless steel finish adds aesthetic appeal while providing corrosion resistance.
• Comprehensive Hardware Accessories: Includes necessary brackets, housings, and dress covers for every opening type, simplifying setup.
• Length of Conductors: Comes with ten feet of jacketed stranded conductor, providing ample length for installation.
• Corrosion Resistant: Lock and strikes plated to enhance durability against corrosion.
• Fail Safe Design: Ensures safety and reliability in all conditions.
• UL Listed: Compliance with UL standards guarantees quality and safety of the product.

Securitron DM62D Detailed Specifications
