Fully integrated intrusion and fire, allows users to interface with one system instead of two
Up to 4 programmable areas, each supporting both perimeter and interior points
40 points with flexible configuration options to meet multiple installation requirements
Your choice of touch screen, vacuum florescent, ATM style or LED keypads
Conettix IP-based communication options provide high-speed, secure alarm transport and control through connection of wired and/or cellular network interfaces
GV4 panels are the premier commercial control panel line from Bosch. GV4 panels integrate intrusion and fire, providing one simple user interface for all systems. With the ability to adapt to large and small applications, the D7212GV4 provides up to 40 individually identified points that can be split into 4 areas. The control panel includes a communicator that sends events to selected public switched telephone network (PSTN), IP network, or cellular network destinations through four programmable route groups.

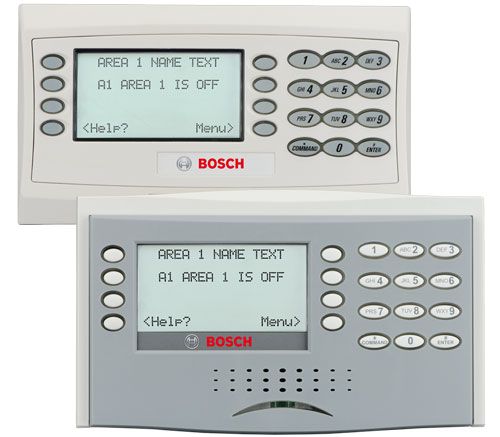

Each D1260 Series Keypad model is an SDI bus compatible device that works with G Series Control Panels. Each keypad model has an illuminated keypad, a bright four-line by 20-character English language liquid crystal display (LCD), and a sounder that emits eight warning tones.
The Conettix B420 Ethernet Communication Module is a communication device that manages secure, two-way IP communications over Ethernet networks for compatible control panels. The B420 is built for a wide variety of secure commercial and industrial applications. Flexible end-to-end path supervision, 128-bit AES encryption, and anti-substitution features make B420 desirable for high-security and fire monitoring applications. It is capable as a stand-alone path or it can be used in conjunction with another communication technology. For Fire Monitoring applications, the B420 meets UL864 and NFPA72 standards for Single Communication Technology with approved Bosch control panels.

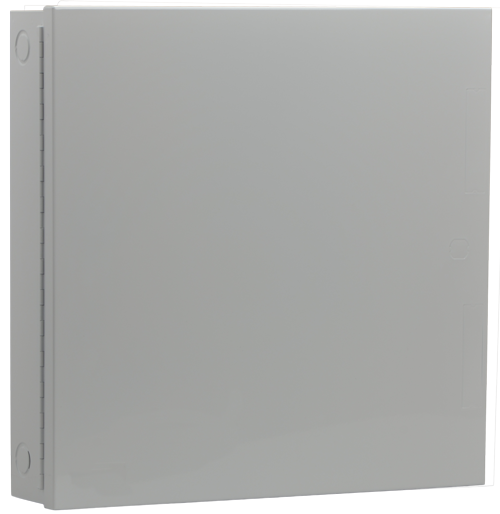

Grey steel enclosure measuring 41 cm x 41 cm x 9 cm (16 in. x 16 in. x 3.5 in.).
Bosch D7212GV4K6 Kit Includes Features
Fully integrated intrusion and fire: Allows users to interface with one system instead of two
Up to 4 programmable areas: Each supporting both perimeter and interior points
40 points with flexible configuration: Options to meet multiple installation requirements
Your choice of keypads: Touch screen, vacuum florescent, ATM style, or LED
Conettix IP-based communication options: Provide high-speed, secure alarm transport and control
Bosch D1260 Features
Integrated user Help windows: Simplifies operation
Illuminated four-line display: Enhances user interaction
Bosch B420 Features
Full 2-way IP alarm/event reporting: Supports panel programming and control
10/100Base-T Ethernet: With DHCP or static IP support
128-bit AES Encrypted Line Security: Ensures high-level security (NIST-FIPS 197)
Plug and Play installation: Simplifies connectivity on most DHCP networks
Advanced configuration: Available by browser for remote or Auto-IP direct connection
