Camden Door Controls CV-601 MPROX Controller with Mullion AWID/HID Format Prox Reader, 4-5 Inch Read Range

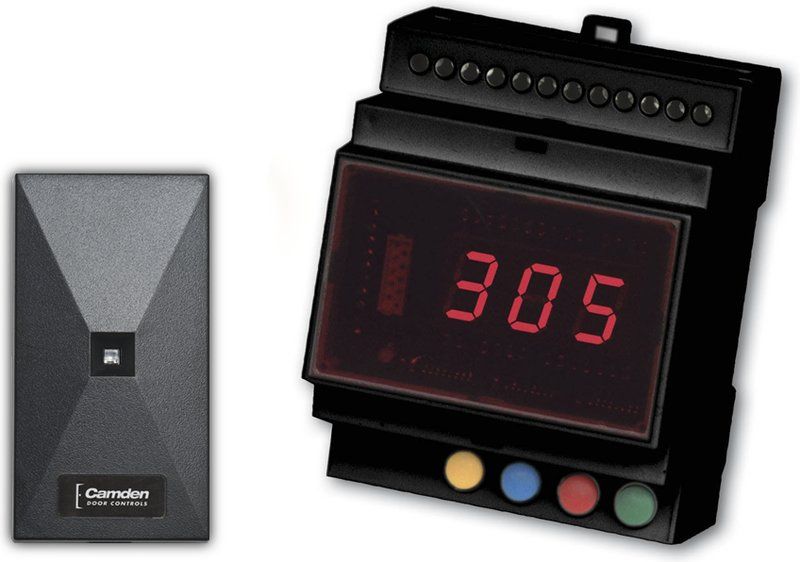

The CV-601 from Camden Door Controls is MPROX consists of two parts; a vandal and weather resistant mullion mount proximity reader and a small programmer/controller which is installed on the secure side of the facility. The system has a capacity of 999 users. Cards and fobs can be individually or batch enrolled/deleted. All programming is done through the controller and reader - there is no need for computers or software to enroll or delete cardholders.

Camden Door Controls CV-601 MPROX Controller + Key Features

• Capacity: Up to 999 users, allowing for flexible access management in medium to large facilities.
• Mounting Style: Jamb mount AWID/HID format proximity reader ensures easy installation and integration.
• Power Supply: 12V AC/DC operation, compatible with various power setups in commercial environments.
• Distance Capability: Operates up to 200 feet (70 meters) between reader and controller, providing extensive coverage for larger facilities.
• Entry Control: Request to exit input (N/O) simplifies exit access for authorized users.
• Relay Specifications: Form C relay - 5 amps, suitable for various locking mechanisms.
• Indication Features: Equipped with a bi-color LED and sounder for user feedback and status indication.
• Door Open Timing: Configurable door open time between 1-180 seconds or latching for tailored access control.
• Presence Input: Ideal for parking and man-trap applications, enhancing security measures.
• Memory Retention: EEPROM Memory retains programming even during power failures, ensuring reliable operation.
