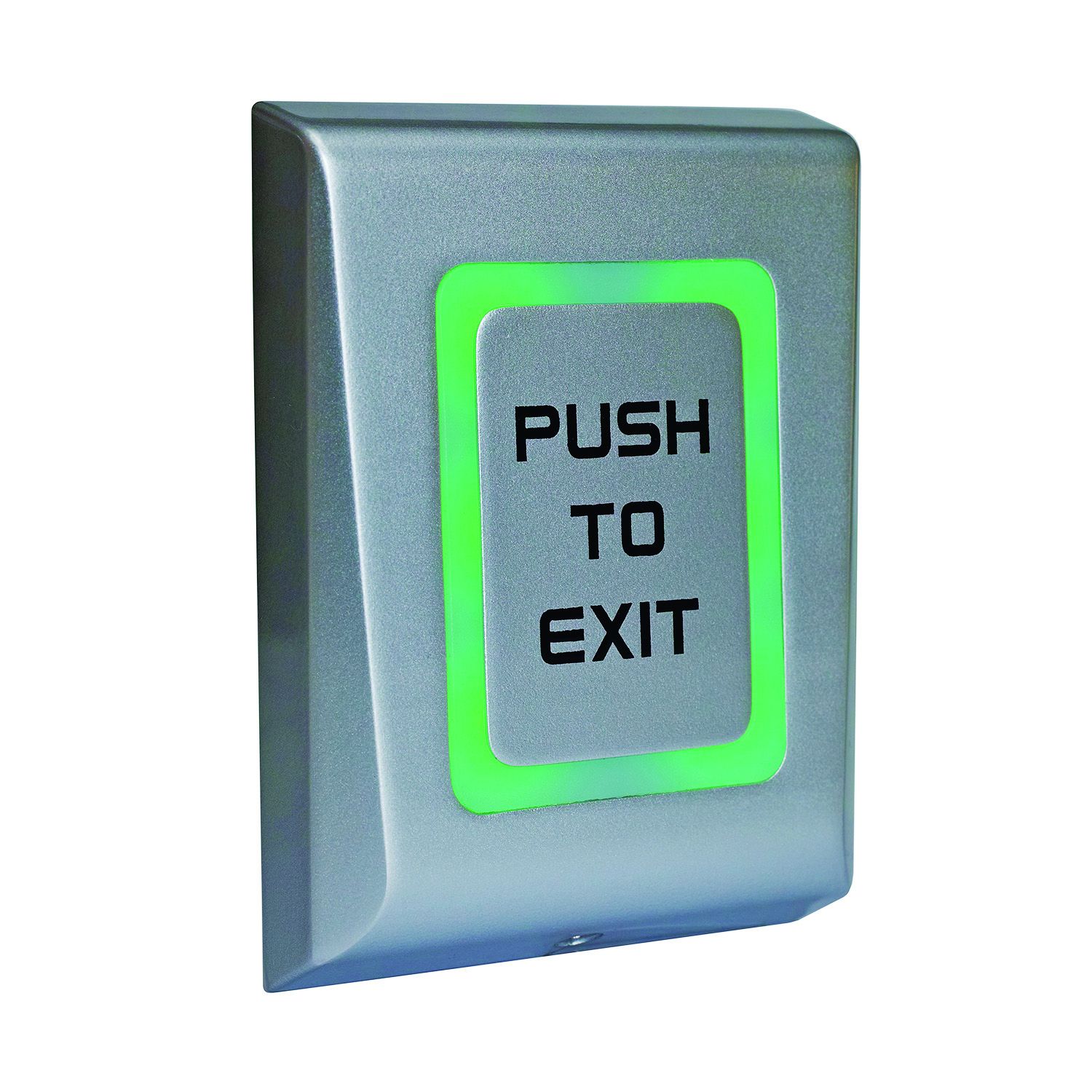

Camden Door Controls CM-9800-7 Surface Mount LED Illuminated Push/Exit Switch

The CM-9800-7 from Camden Door Controls is a Surface Mount LED Illuminated Push/Exit Switch. CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with IP 66 rating. The units feature a cast metal design and an adjustable 0 to 60 second relay timer. The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status. The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED light illumination enables the switch to be highly visible in low light conditions.

Camden Door Controls CM-9800-7 Key Features

• Capacitive Touch Technology: Facilitates ease of activation with just a light touch, enhancing user convenience.
• APA and ROHS Compliant: Ensures environmental safety and compliance with international standards.
• Weather and Vandal Resistant: IP 66 rating guarantees durability and reliability in various weather conditions.
• Large LED Light Ring (Red/Green/Orange/None): Provides high visibility in low-light situations, aiding in user detection and operation.
• Switch or Door Status Illumination (External Input): Offers versatile illumination options based on the switch or door status for tailored functionality.
• 'Hold Open' Relay Timer, Selectable 0-60 seconds: Allows customized timer settings, improving flexibility for different applications.
• Heavy Duty 2 Amp Contacts, Form 'C': Systems are designed for high performance and reliability in demanding environments.
• Tamper Alarm, Selectable On/Off: Added security feature that alerts users of unauthorized access attempts.
• Power Supply: 12-24V AC/DC: Compatible with a wide range of electrical systems, ensuring versatile installation options.

Camden Door Controls CM-9800-7 Detailed Specifications
