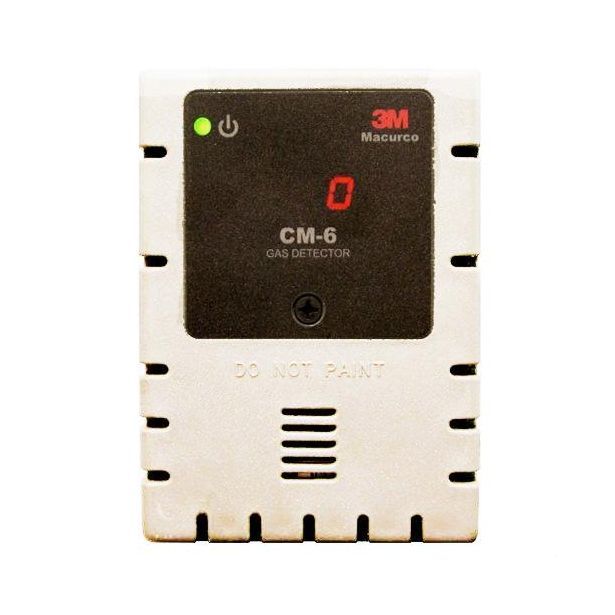

Macurco CM-6 WHITE Carbon Monoxide CO Fixed Gas Detector Controller Transducer with White Housing

The Macurco CM-6 is a low voltage, dual relay Carbon Monoxide (CO) detector, controller and transducer. The CM-6 has selectable 4-20 mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of CO and provide feedback and automatic exhaust fan or valve control to help reduce CO concentrations in parking garages, maintenance facilities or other commercial applications. The CM-6 is a low level meter capable of displaying from 0-200 ppm of Carbon monoxide.

Macurco CM-6 WHITE Carbon Monoxide Detector Features

• Easy Installation: Mounts on a standard 4” x 4” electrical box for hassle-free setup.
• Automatic Control: 5 A SPDT fan relay controls valves, louvers or exhaust fans, ensuring automatic response to CO levels.
• Alarm System: 0.5 A N.O. or N.C alarm relay connects directly to warning devices or control panels, enhancing reaction speed during emergencies.
• Versatile Compatibility: 4-20mA current loop - integrates seamlessly with the Macurco DVP-120 Control Panel for comprehensive monitoring.
• Ready-to-Use: Factory calibrated for immediate deployment, ensuring accuracy from the start.
• Reliable Supervision: Supervised system design ensures detector problems trigger both the fan and alarm relay, enhancing safety.
• Field Calibration: Optional calibration kit allows the CM-6 to be field tested and calibrated to maintain peak performance.
• Safety Standards: ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1, and LADBS Approved, confirming adherence to safety regulations.
• Stylish Design: Comes in a white housing that blends with various aesthetics.

Macurco CM-6 Detailed Specifications
