Camden Door Controls CM-331 Wired Touchless Switch, 1 Relay
SKU
CM-331
Model No
CM-331
$164.20
Product Highlights
- Indoor/outdoor use: -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28"
- Adjustable time delay, refer to model specifcation
Speak to an expert

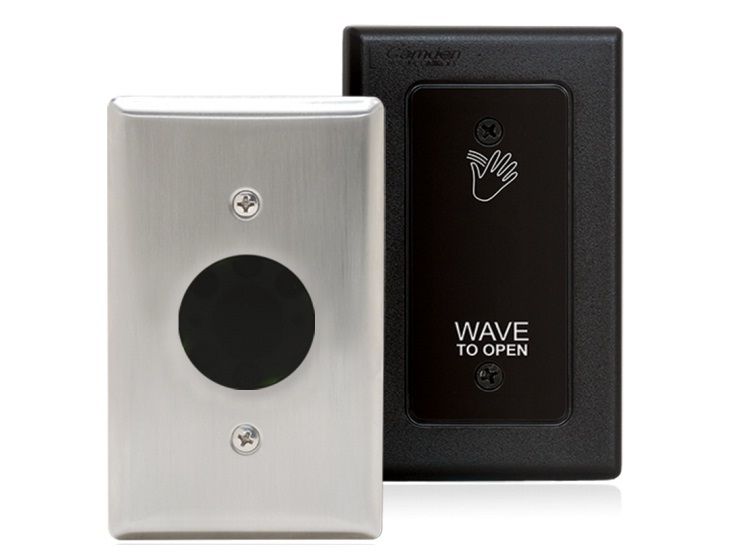

The CM-331 from Camden Door Controls is a Wired Touchless switch designed for optimal door activation and control while promoting hygiene by minimizing contact points, effectively reducing the spread of germs. This versatile switch features adjustable operating ranges and various operational modes, making it an intelligent option for both indoor and outdoor use.
Camden Door Controls CM-331 Touchless Switch Features
- Indoor/outdoor use: Operating temperature range of -4ºF to +153ºF (-20ºC to +85ºC) ensures functionality across diverse environments, with a gasket included in the package for added protection.
- Line powered operation: Supports 12/24V AC/DC, guaranteeing reliable and consistent power supply for seamless operation.
- Versatile faceplates: Available in narrow (jamb), single, and double gang configurations, allowing for easy integration with existing setups.
- Material options: Choose from durable polycarbonate (black) or stainless steel faceplates to fit aesthetic and functional needs.
- Advanced technology: Utilizes cutting-edge active infra-red technology for fast response times, enhancing user experience and safety.
- Heavy-duty relay: Equipped with a robust 3 or 5 Amp rated relay, ensuring reliable performance under various conditions.
- Adjustable operating range: Configure an operating range of up to 28" for customized activation based on user needs.
- Customizable time delay: Options for adjustable time delays enhance flexibility and convenience, as outlined in the model specification.
- Fail safe/fail secure operation: Selectable operational modes enhance security and adapt to different user requirements.
- Active output for alarms: Direct connection capabilities for external alarms, LEDs, or annunciators, ensuring complete user awareness.
- Optional LED status indicator: Customizable red/blue/green LED light ring (available with single gang stainless steel faceplate) indicates the operational status of the switch or door.
Camden Door Controls CM-331 Detailed Specifications
| Product Type | Wired Touchless Switch |
| Operating Temperature | -4ºF to +153ºF (-20ºC to +85ºC) |
| Power Supply | 12/24V AC/DC |
| Relay Rating | 3 or 5 Amp |
| Operating Range | Up to 28” |
| Faceplate Types | Narrow (jamb), single, double gang |
| Faceplate Materials | Polycarbonate (black), stainless steel |
| Technology | Active infra-red |
| Time Delay | Adjustable (refer to model specification) |
| Operation Modes | Select from fail safe/fail secure |
| Alarm Output | Active output for external alarm, LED, or annunciator |
| LED Indicator | Optional red/blue/green light ring |
SKU  | CM-331 |
|---|---|
| Manufacturer | Camden Door Controls |
