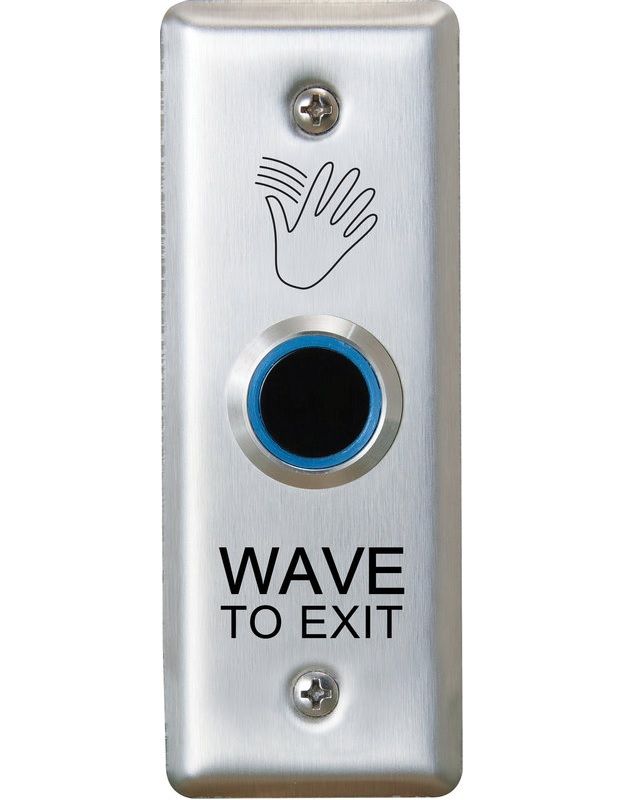

Camden Door Controls CM-222-46 ValueWave Touchless Switch, Single Gang, 'Wave to Exit' Graphics

The CM-222-46 from Camden Door Controls is a valuewave touchless switch, single gang, 'wave to exit' graphics. Camden ValueWave 12/24 VDC touchless switches with 1 relay are IP65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems. These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. ValueWave™ hands free switches are both water resistant and offer a built-in light ring standard.

Camden Door Controls CM-222-46 Touchless Switch Features

• Adjustable sensor range: 2" to 8" (5 to 20 cm) - This feature allows customization for varying foot traffic levels, ensuring efficient operation.
• Adjustable time delay: (0.5 to 20 sec.) and toggle operation - Provides flexibility in user experience, accommodating different operational needs.
• Light ring: Red/green OR blue/green light ring with switch or remote activation - Visual indicators enhance usability by providing clear feedback on switch activation.
• Weather resistance: IP 65 rated - Ensures reliable performance in outdoor settings and adverse weather conditions.
• Faceplates: Single, narrow and double gang stainless steel - Durable and sleek design that blends well with different environments.
• Graphics: Selection of faceplate laser etched graphics, resistant to cleaners - Maintains aesthetic appeal and visibility over time, even with regular maintenance.
• Contact rating: (1) Form 'C' contact, 1A @ 30 VDC - Reliable switching capability for various electrical systems.
• Manual override: Option for manual 'Override' Switch - Adds control flexibility for users in special situations.

Camden Door Controls CM-222-46 Specifications
