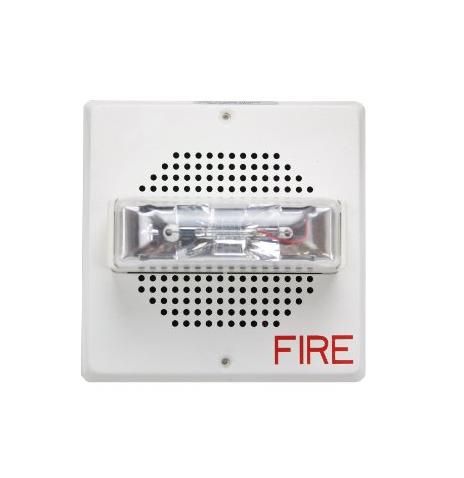

Bosch CH70-24MCWH-FW High Candela Chime Strobe, White
SKU
CH70-24MCWH-FW
Model No
CH70-24MCWH-FW
$115.39
Product Highlights
- Low current draw with temperature compensation to reduce power consumption and wiring costs
- 24 VDC, filtered or FWR
- Adjustable volume and tone
- Single-stroke or vibrating tone
- Selectable strobe intensities of 135 cd or 185 cd
Speak to an expert
Introducing the Bosch CH70-24MCWH-FW High Candela Chime Strobe, a versatile and efficient solution designed to enhance safety and alert capabilities in any environment. This advanced unit features a low current draw, customizable audio signals, and high-intensity strobe options, making it ideal for both residential and commercial applications. Experience reliable performance with easy installation and synchronization options.
Bosch CH70-24MCWH-FW Camera Features
Features
- Low Current Draw: Minimizes power consumption and saves on wiring costs with built-in temperature compensation.
- 24 VDC Compatibility: Works seamlessly with filtered or FWR systems for versatile application.
- Adjustable Volume and Tone: Allows users to customize sound levels and tone frequencies for specific environments.
- Single-Stroke or Vibrating Tone: Offers a choice between alert types to suit individual needs.
- Selectable Strobe Intensities: Provides options for 135 cd or 185 cd light outputs, enhancing visibility during emergencies.
Bosch CH70-24MCWH-FW Detailed Specifications
| Current Draw | Low current with temperature compensation |
| Operating Voltage | 24 VDC, filtered or FWR |
| Volume Control | Adjustable sound level |
| Audio Tone | Chime tone adjustable from 800 Hz to 1200 Hz |
| Strobe Intensities | Selectable between 135 cd and 185 cd |
| Mounting | Attached mounting plate for easy installation on various electrical boxes |
| Synchronization | Compatible with SM (single) or DSM (dual) modules |
SKU  | CH70-24MCWH-FW |
|---|---|
| Manufacturer | Bosch |
| Type | Indoor |
| DB | 0DB-100DB |
| Siren Types | Sirens, Strobes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
CH70-24MCWH-FW-Specsheet CH70-24MCWH-FW-Installation-Manual
