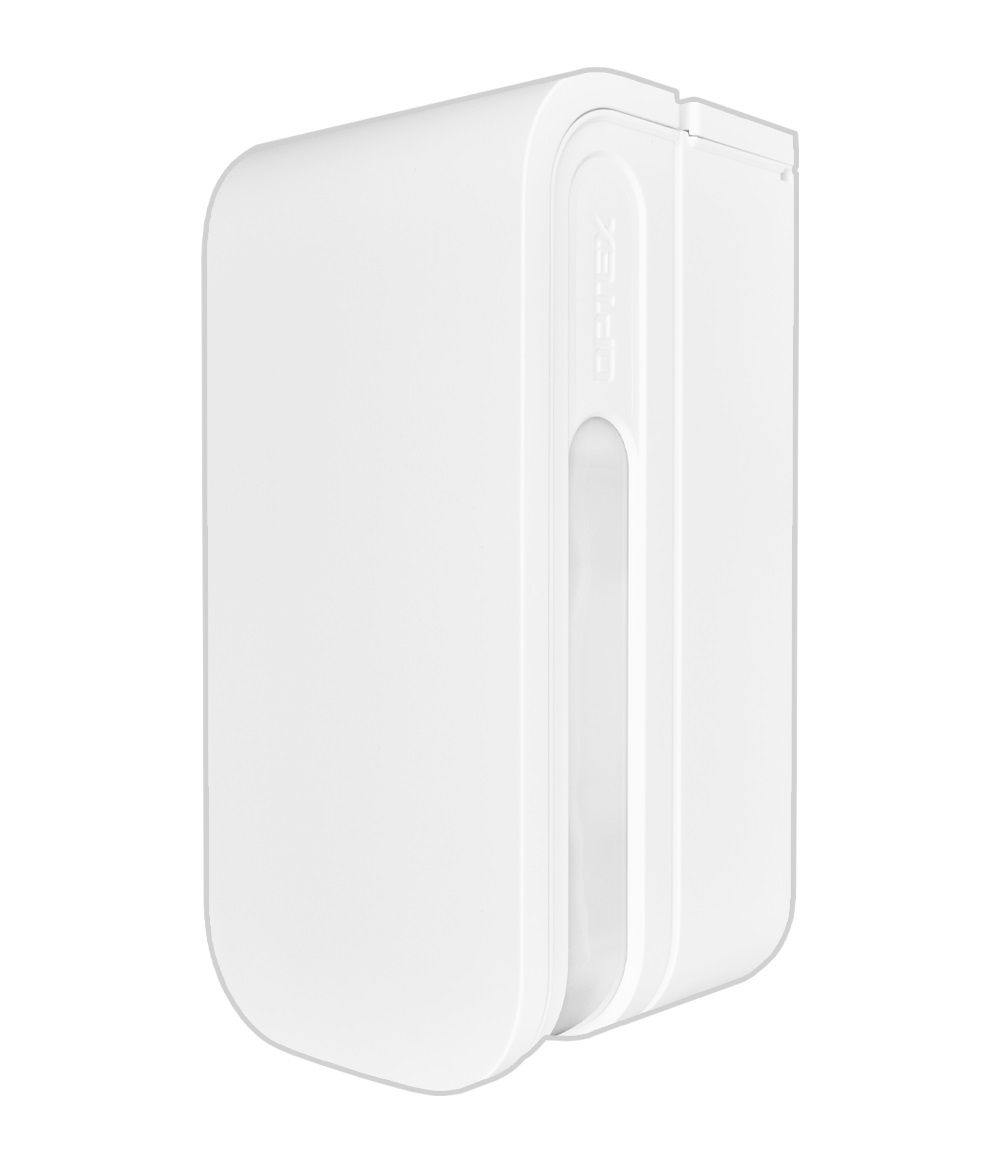

Optex BXS-R-W Standard Wireless-Ready Model, 80'/ 40' Each Side

The BXS-R-W from Optex is a standard wireless-ready model, 80'/ 40' each side. The BX Shield (BXS) series is a range of quad PIR sensors that are ideal for protecting windows and the immediate boundaries of a building or site. Combining great usability and versatile design, the BX Shield series includes four PIRs, two on each side of the unit. Detection range and sensitivity can be adjusted independently on each side of the sensor, up to 80ft total (40ft per side), for high-performing flexibility. Equipped with SMDA logic (Super Multidimensional Analysis), the BX Shield drastically improves immunity against changes in temperature or moving trees and vegetation, effectively distinguishing between the cause of nuisance false alarms and genuine intrusions. The BXS also excels in environments where the temperature difference between the human body and the background is very small, due to its extreme high detection mode increasing the PIR sensitivity, preventing any missed alarms.

Optex BXS-R-W Camera Features

• Four PIR Technology: Two sensors on each side enhance detection accuracy and coverage.
• Completely Independent Detection Settings: Allows for customized detection tailored to specific environmental conditions on each side.
• Large Detection Area: Up to 40ft on each side, providing a total detection span of 80ft (12m/24m) for comprehensive security.
• SMDA Logic: Effectively reduces false alarms by differentiating between non-threats and real intrusions.
• Size Analysis Function: Ignores irrelevant sources of disturbance, ensuring reliable monitoring.
• Extreme High Detection Mode: Increases sensitivity for detecting intrusions even when temperature differences are minimal.
• Tamper Output: Alerts when the face cover or back box is tampered, ensuring the security system remains functional.
• Versatile Design: Fits a variety of installation needs and spaces seamlessly.
• Automatic Walk Test Mode: Simplifies installation and ensures the sensor is working correctly by testing the detection zone.

Detailed Optex BXS-R-W Specifications
