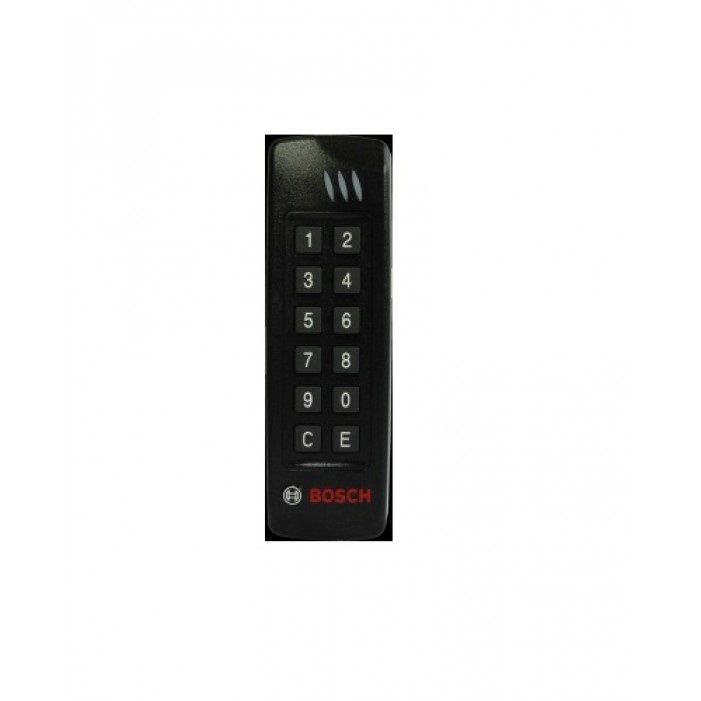

Bosch Card reader with keypad, MIFARE EV1, ARD-AYBS6380

The LECTUS duo 3000 DESFire EV1 line consists of two readers for MIFARE classic and EV1 cards and transponders. It support the data record of Bosch coded MIFARE credentials and the CSN of ISO14443A cards as well. Reader provide a 26 Bit Wiegand and RS485/ OSDP host interface, selectable easily by DIP switch. When operating in RS485/OSDP mode up to eight readers can be connected to a respective controller,e.g. AMC2-4R4. Reader address is settable via four DIP switches individually. Running in that mode readers can be easily supervised. Three LED indicators and a beeper give clear feedback to the user during operation. The reader logo is illuminated in the dark. The reader is IP65 rated and fits for indoor and outdoor use.

Features

• Two interfaces - RS485 and Wiegand
• Reader for MIFARE Desire EV1
• Water and weather resistant - IP65
• Wall or mullion mount
• Tamper switch
