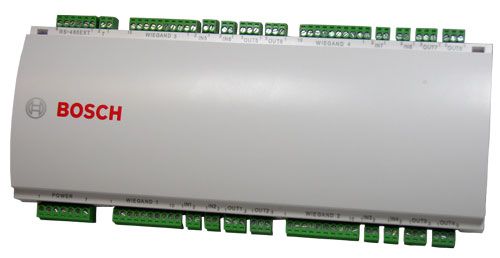

Radionix by Bosch API-AMC2-4WE Wiegand Extension Board
SKU
API-AMC2-4WE

Bosch Model API-AMC2-4WE

Radionix by Bosch API-AMC2-4WE Wiegand Extension Board

Free shipping
Model No
API-AMC2-4WE
$801.55
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • RS485 connection to the AMC2 4W controller
  • 4 Wiegand reader interfaces
  • 8 analog inputs
  • 8 relais outputs (wet or dry)
  • Status of inputs and outputs shows on AMC2 4W LCD display

Overview

The Bosch API-AMC2-4WE Wiegand Extension Board is a powerful accessory designed to enhance the capabilities of the AMC2 4W controller. With four Wiegand-type reader interfaces and additional inputs and outputs, this extension module effectively doubles the number of readers, providing flexibility and expanded control without the need for an independent controller. It seamlessly integrates with the AMC2 4W, delivering reliable performance and easy monitoring through the main controller's LCD display.

Bosch API-AMC2-4WE Wiegand Extension Features

  • RS485 Connection: Ensures reliable communication with the AMC2 4W controller, facilitating a stable and efficient operation.
  • 4 Wiegand Reader Interfaces: Doubles the number of connected Wiegand readers from 4 to 8, enhancing access control capabilities.
  • 8 Analog Inputs: Provides additional channels for monitoring various sensors and devices, allowing for greater system flexibility.
  • 8 Relais Outputs: Offers versatile output options (wet or dry), enabling customization based on specific needs and configurations.
  • Status Display: Current input and output statuses are visible on the AMC2 4W LCD display, ensuring easy monitoring and control.
  • Transfer Rate: A transfer rate of 9.6 kBit/sec to the EXT interface ensures efficient communication and data transfer.

Detailed Specifications for Bosch API-AMC2-4WE

FeatureDetails
Connection TypeRS485
Reader Interfaces4 Wiegand type
Analog Inputs8
Relais Outputs8 (wet or dry)
Display StatusAMC2 4W LCD display
Transfer Rate9.6 kBit/sec
CompatibilityDedicated extension for AMC2 4W
Maximum Extensions1 API-AMC2-4WE + 3 I/O modules

Specifications

SKU  API-AMC2-4WE
Manufacturer  Bosch
